| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load Capacitance | |
| Motional Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Shunt Capacitance | |
| Storage Temperature | |
| Tape & Reel | |
| Turn-Over Temperature | |
| Type | |
| Width |

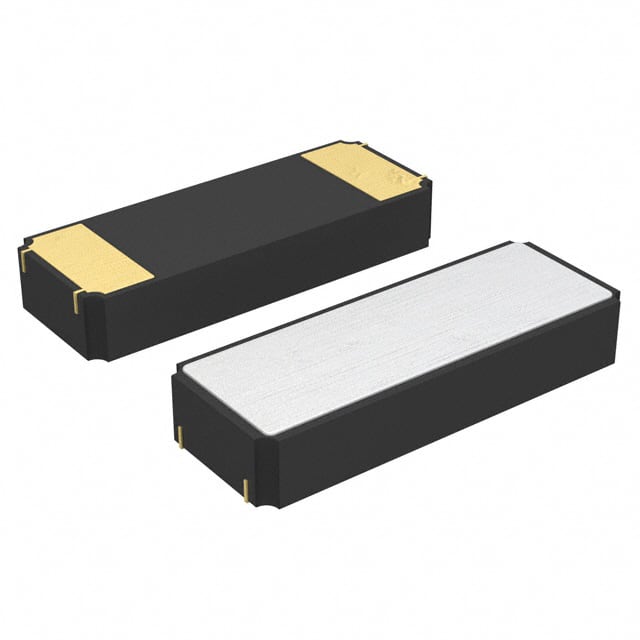

The ABS10-32.768KHZ-T from Abracon LLC is a 32.768 kHz tuning fork crystal designed for real-time clock (RTC) timing applications. It operates in fundamental mode with a frequency tolerance of ±20 ppm at 25°C. The load capacitance is 12.5 pF, and the maximum equivalent series resistance is 70 kΩ. The crystal is housed in a 2-SMD, no-lead ceramic package measuring 4.9 mm x 1.8 mm x 1.0 mm, ideal for high-density circuit boards.
The device supports an operating temperature range of -40°C to 85°C with a turn-over temperature of 25°C ±5°C. Storage temperature extends from -55°C to 125°C. Maximum drive level is 1.0 µW, and first-year aging is limited to ±5 ppm. Insulation resistance is a minimum of 500 MΩ at 100 Vdc. The shunt capacitance is typically 1.0 pF, and motional capacitance is 2.0 fF.
This surface-mount crystal is suitable for industrial and consumer electronics requiring accurate low-frequency timing. It is supplied in tape and reel packaging. The datasheet indicates this part is end-of-life (EOL) with a last time buy of June 30, 2021; replacement parts ABS04W-32.768KHZ-T and ABS05-32.768KHZ-T are recommended for new designs.
32.768 kHz.
±20 ppm.
12.5 pF.
70 kΩ.
-40°C to 85°C.
4.9 mm x 1.8 mm x 1.0 mm, 2-SMD no lead.
RoHS3 compliant according to manufacturer data, but unverified (low confidence).
