| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,095 pcs
|
1095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Equivalent Series Resistance (Typical/Maximum) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Motional Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Packaging Type | |
| Shunt Capacitance | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Turn-Over Temperature | |
| Type | |
| Width |

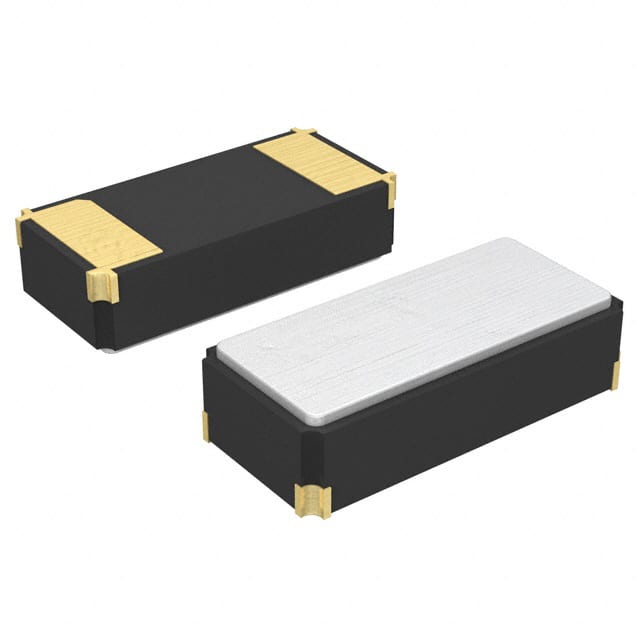

The Abracon ABS07L-32.768KHZ-T is a surface mount quartz crystal offering a nominal frequency of 32.768 kHz. It provides a frequency tolerance of ±20 ppm at 25°C and operates in fundamental mode. The crystal is designed for a load capacitance of 12.5 pF and features a typical equivalent series resistance of 55 kΩ with a maximum of 80 kΩ.
Housed in a miniature 3.2 mm x 1.5 mm x 0.38 mm 2-SMD no lead ceramic package, this crystal supports a wide operating temperature range from -40°C to +85°C. It is RoHS/RoHS II compliant and has a Moisture Sensitivity Level of 1 (unlimited). The part is supplied on tape and reel with a standard quantity of 3000 pieces per reel.
Typical applications include real-time clock circuits, portable electronics, wireless communications, and instrumentation where low power consumption and a small footprint are critical. The ultra low profile is suitable for high density circuit board designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.24 | $3.24 |
| 10+ | $2.82 | $2.82 |
| 25+ | $2.55 | $2.55 |
| 100+ | $2.45 | $2.45 |
| 250+ | $2.22 | $2.22 |
| 500+ | $2.17 | $2.17 |
| 1,000+ | $2.12 | $2.12 |
| 3,000+ | $1.99 | $1.99 |
| 6,000+ | $1.98 | $1.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal frequency is 32.768 kHz.
±20 ppm at 25°C.
12.5 pF.
-40°C to +85°C.
2-SMD, No Lead ceramic package.
Yes, the datasheet states it is RoHS/RoHS II compliant.
