| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Q Value | |
| Sealing Method | |
| Shunt Capacitance (C0) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Turn-Over Temperature | |
| Type | |
| Width |

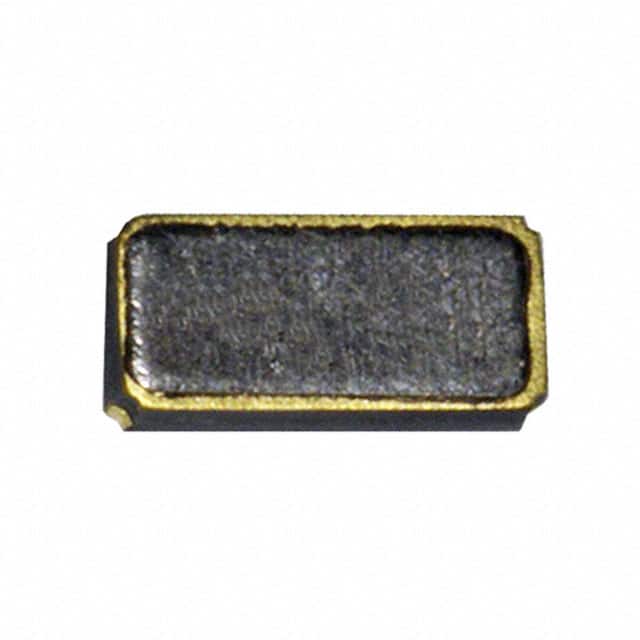

The Abracon ABS07-LR-32.768KHZ-6-1-T is a 32.768 kHz tuning fork crystal designed for low-power and space-constrained applications. It operates in fundamental flexural mode with a nominal frequency of 32.768 kHz and a frequency tolerance of ±20ppm at +25°C. The crystal features a load capacitance of 6pF and a maximum equivalent series resistance (ESR) of 50kΩ, making it suitable for low-power oscillator circuits.
This crystal offers a typical quality factor (Q) of 25000 and a shunt capacitance of 1.3pF. It is rated for a drive level of up to 0.5µW and exhibits an aging characteristic of ±3ppm over the first year at +25°C. The temperature coefficient is typically -0.034 ppm/°C² with a turn-over temperature of +25°C.
The device is housed in a seam-sealed ceramic 2-SMD, No Lead package measuring 3.2mm x 1.5mm x 0.9mm, suitable for surface mount assembly. It operates over an industrial temperature range of -40°C to +85°C and can be stored from -55°C to +125°C. The part is RoHS/RoHS II compliant and has an MSL level of N/A.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
| 10+ | $1.31 | $1.31 |
| 25+ | $1.19 | $1.19 |
| 100+ | $1.14 | $1.14 |
| 250+ | $1.08 | $1.08 |
| 500+ | $1.03 | $1.03 |
| 1,000+ | $0.99 | $0.99 |
| 3,000+ | $0.92 | $0.92 |
| 6,000+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32.768 kHz
±20ppm at +25°C
6pF
-40°C to +85°C
Yes, RoHS/RoHS II Compliant
3.2mm x 1.5mm x 0.9mm in a 2-SMD, No Lead package
