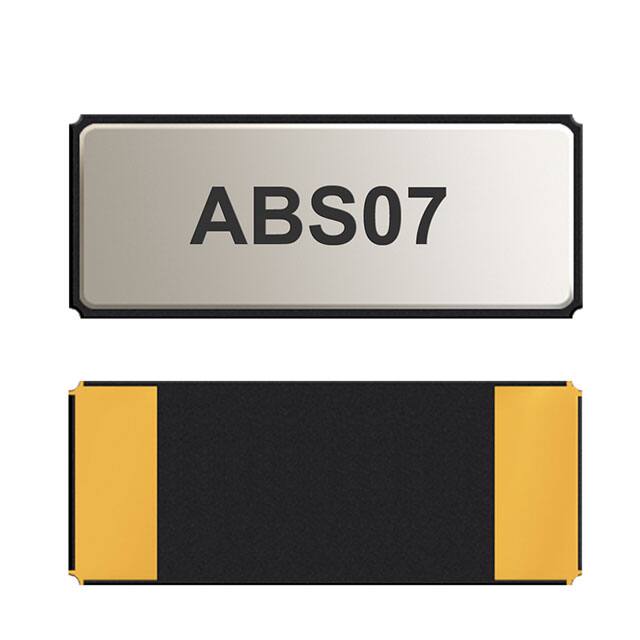

The Abracon ABS07-32.768KHZ-9-H-T is a surface mount tuning fork crystal designed for precise timing applications. It operates at a fundamental frequency of 32.768 kHz with a frequency tolerance of ±20 ppm at +25°C. The load capacitance is 9 pF, and the equivalent series resistance (ESR) is 70 kΩ maximum. This crystal is suitable for a wide operating temperature range of -40°C to +85°C, with a storage range of -55°C to +125°C.
The crystal features a low profile 0.9 mm height and a compact 3.2 x 1.5 mm footprint, making it ideal for high-density circuit boards. It is packaged in a 2-SMD, no lead ceramic package with seam sealing, providing excellent environmental and heat resistance. The drive level is 0.1 to 0.5 µW, and the shunt capacitance ranges from 0.9 to 2.0 pF.
This component is RoHS/RoHS II compliant and has an MSL level of N/A. It is commonly used in wireless communications, measuring equipment, and commercial and industrial applications. The ABS07 series offers a reliable timing solution for designs requiring low frequency in a small SMD package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
| 10+ | $1.23 | $1.23 |
| 25+ | $1.14 | $1.14 |
| 100+ | $1.06 | $1.06 |
| 250+ | $0.96 | $0.96 |
| 500+ | $0.94 | $0.94 |
| 1,000+ | $0.90 | $0.90 |
| 3,000+ | $0.84 | $0.84 |
| 6,000+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The crystal is housed in a 2-SMD, no lead surface mount package with dimensions 3.20 mm x 1.50 mm x 0.90 mm.
The operating temperature range is -40°C to +85°C.
Yes, the crystal is RoHS/RoHS II compliant as verified from the datasheet.
The frequency tolerance is ±20 ppm at +25°C.
The specified load capacitance is 9 pF.
The maximum ESR is 70 kΩ.
