| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
286 pcs
|
286 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Aging | |
| Automotive Grade | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Shunt Capacitance | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Turn-Over Temperature | |
| Type | |
| Width |

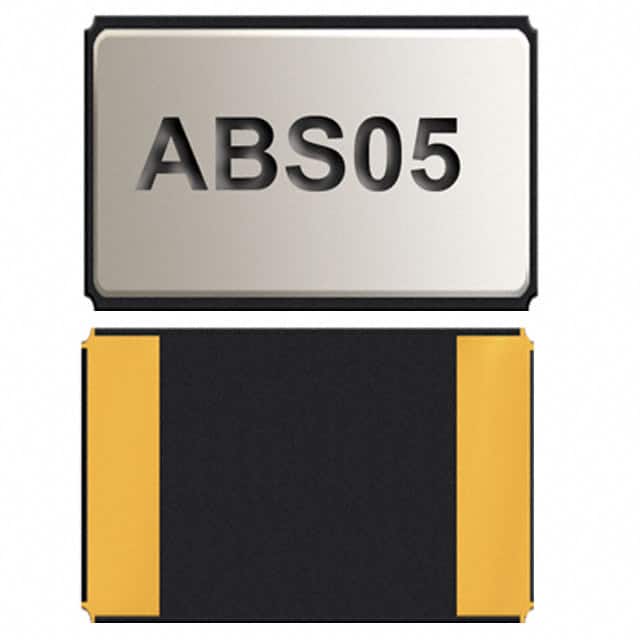

The ABS05-32.768KHZ-T is a 32.768 kHz tuning fork crystal from Abracon LLC, part of the ABS05 series. It is designed for surface mount applications requiring a low-profile, compact timing solution.
Key electrical specifications include a frequency tolerance of ±20 ppm at +25°C, load capacitance of 12.5 pF, maximum ESR of 90 kΩ, and shunt capacitance of 1.3 pF. The crystal operates in fundamental mode with a drive level of 0.5 µW. It has an operating temperature range of -40°C to +85°C and storage temperature of -55°C to +125°C.
The crystal is housed in a 2-SMD, no lead package measuring 1.60 mm x 1.00 mm x 0.50 mm. It is supplied on tape and reel with a standard quantity of 3000 pieces per reel. The component is RoHS3 compliant and has an MSL rating of N/A.
Typical applications include wireless modules, IoT devices, Bluetooth/BLE, low-power MCUs, and communication equipment. The low profile and small footprint make it suitable for height-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.60 | $0.60 |
| 25+ | $0.55 | $0.55 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.50 | $0.50 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.43 | $0.43 |
| 3,000+ | $0.36 | $0.36 |
| 6,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32.768 kHz.
±20 ppm at +25°C.
12.5 pF.
-40°C to +85°C.
2-SMD, No Lead surface mount package.
Yes, RoHS3 compliant.
90 kΩ.
