| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
141,000 pcs
|
141000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
472 pcs
|
472 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
444 pcs
|
444 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level (Maximum @ Maximum) | |
| Drive Level (Typical @ Typical) | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Shunt Capacitance (C0) | |
| Standard Package Quantity | |
| Tape & Reel | |
| Type | |
| Width |

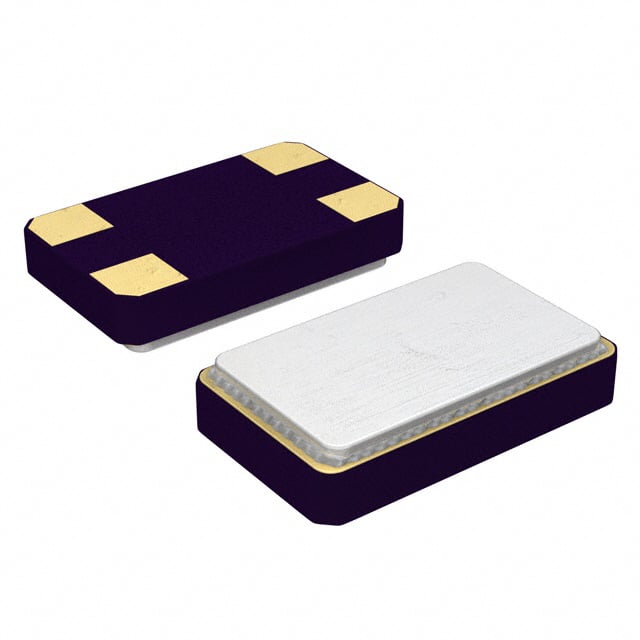

The Abracon ABMM2-8.000MHZ-E2-T is a fundamental mode ceramic SMD crystal that operates at a frequency of 8 MHz. It comes in a compact 6.0 x 3.5 x 1.2 mm 4-SMD no lead package, making it suitable for surface mount assembly and reflow processes.
This crystal offers a load capacitance of 18pF, a frequency tolerance of ±20ppm at 25°C, and a frequency stability of ±20ppm over the -20°C to +70°C operating temperature range. The equivalent series resistance is a maximum of 72Ω, and the shunt capacitance is 7.0pF. The drive level is rated at 100µW typical and 500µW maximum.
Designed for high reliability, the ABMM2 uses a seam sealed ceramic package. It is suitable for use in computers, modems, microprocessors, communication equipment, and test equipment. The part is RoHS/RoHS II compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.82 | $0.82 |
| 25+ | $0.74 | $0.74 |
| 100+ | $0.71 | $0.71 |
| 250+ | $0.66 | $0.66 |
| 500+ | $0.64 | $0.64 |
| 1,000+ | $0.62 | $0.62 |
| 2,000+ | $0.58 | $0.58 |
| 5,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency is 8 MHz.
The load capacitance is 18 pF.
The operating temperature range is -20°C to +70°C.
Yes, the datasheet states it is RoHS/RoHS II Compliant.
The package is 4-SMD, No Lead with dimensions 6.00 mm x 3.60 mm x 1.20 mm.
