| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Aging | |
| Automotive Grade | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Shunt Capacitance | |
| Standard Package Qty | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

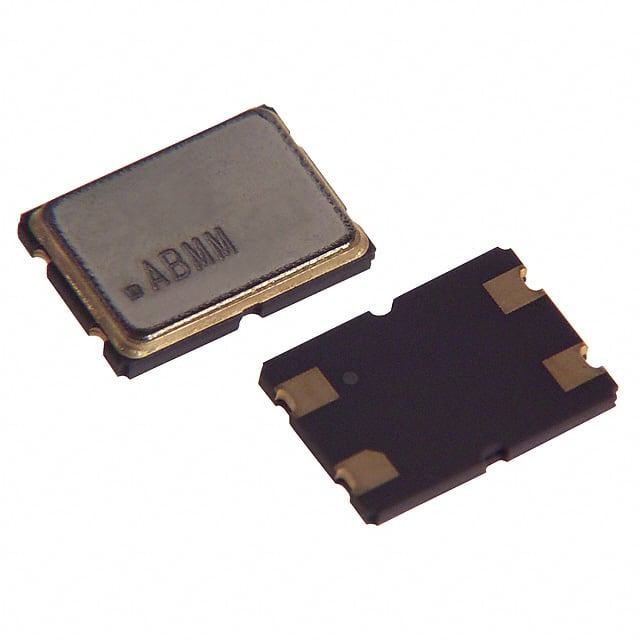

The ABMM-27.000MHZ-B2-T is a ceramic surface mount microprocessor crystal from Abracon LLC. It operates at a frequency of 27 MHz with a frequency tolerance of ±20 ppm and frequency stability of ±50 ppm over the operating temperature range of -20°C to +70°C.
This crystal is designed for fundamental mode operation and features a load capacitance of 18 pF. It offers an equivalent series resistance (ESR) of 40 Ω maximum. The shunt capacitance is 7 pF maximum and insulation resistance is 500 MΩ minimum at 100 Vdc. Aging is specified at ±5 ppm per year.
The component is housed in a compact 7.0 mm x 5.0 mm x 1.3 mm 4-SMD no lead package suitable for surface mount assembly. It is available in tape and reel packaging with a standard reel quantity of 1000 pieces. The part is designed for RoHS compliant reflow soldering processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.75 | $0.75 |
| 100+ | $0.72 | $0.72 |
| 250+ | $0.68 | $0.68 |
| 500+ | $0.65 | $0.65 |
| 1,000+ | $0.63 | $0.63 |
| 2,000+ | $0.58 | $0.58 |
| 5,000+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
27 MHz
18 pF
-20°C to +70°C
4-SMD, No Lead (7.0 mm x 5.0 mm x 1.3 mm)
40 Ω maximum
RoHS3 Compliant (unverified)
±20 ppm at 25°C
