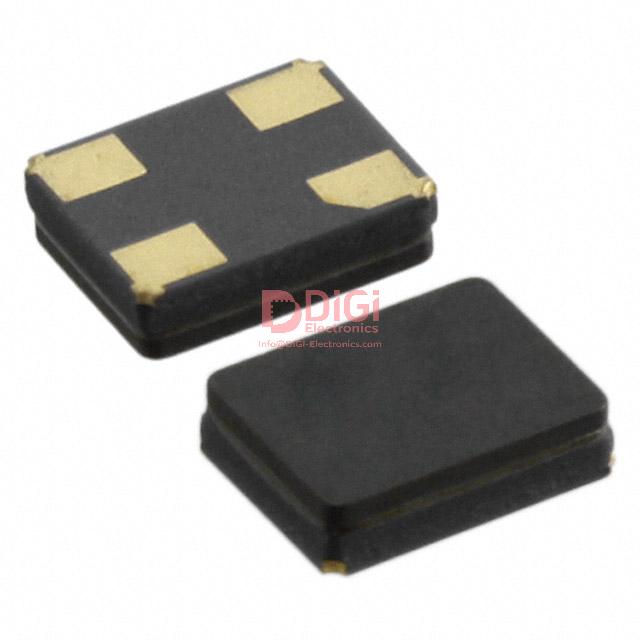

ABM8G12000MHZ18D2YT The Abracon LLC ABM8G-12.000MHZ-18-D2Y-T is a crystal oscillator with a frequency of 12 MHz. It features a load capacitance of 18pF and a frequency tolerance of ±20ppm.
Mfr Part #:

ABM8G12000MHZ18D2YT

Available from 3 distributors
Mfr Name: Abracon LLC
Abracon LLC
The Abracon LLC ABM8G-12.000MHZ-18-D2Y-T is a crystal oscillator with a frequency of 12 MHz. It features a load capacitance of 18pF and a frequency tolerance of ±20ppm.
✓ Total Stock: 169,196 pcs
$ Price Range: $0.50

ABM8G12000MHZ18D2YT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
168,000 pcs
On Request
168000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
598 pcs
On Request
598 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
598 pcs
On Request
598 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ABM8G12000MHZ18D2YT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Stability
Frequency Tolerance
Lead Spacing
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
View Similar Products (0)

ABM8G12000MHZ18D2YT Description

Short technical summary and product information.

This crystal from Abracon LLC, part number ABM8G-12.000MHZ-18-D2Y-T, operates at a nominal frequency of 12 MHz. It offers a frequency stability of ±30ppm and a frequency tolerance of ±20ppm, with a specified load capacitance of 18pF. The crystal has an Equivalent Series Resistance (ESR) of 120 Ohms and operates in fundamental mode.



Designed for surface mounting, this component comes in a 4-SMD, No Lead package. Its dimensions are 0.126" L x 0.098" W (3.20mm x 2.50mm), with a maximum seated height of 0.039" (1.00mm). The operating temperature range is from -40°C to 85°C.



This crystal is suitable for applications requiring stable frequency generation in a compact surface-mount form factor.

ABM8G12000MHZ18D2YT Quick Information

Product Type: Crystal
Series: ABM8G
Canonical Name: ABM8G-12.000MHZ-18-D2Y-T Crystal
Subcategory: Programmable Oscillators

ABM8G12000MHZ18D2YT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ABM8G12000MHZ18D2YT Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ABM8G12000MHZ18D2YT Features

  • 12 MHz nominal frequency output.
  • ±20ppm frequency tolerance specification.
  • 18pF load capacitance required.
  • Surface mount 4-SMD, No Lead package.
  • Operates from -40°C to 85°C.

ABM8G12000MHZ18D2YT Applications

  • Suitable for general frequency generation.
  • Used in compact electronic circuits.
  • Ideal for embedded systems.
  • Applicable in signal processing.

ABM8G12000MHZ18D2YT FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this crystal?

The operating temperature range is -40°C to 85°C.

What is the frequency tolerance of the ABM8G-12.000MHZ-18-D2Y-T?

The frequency tolerance is ±20ppm.

What is the load capacitance for this crystal?

The load capacitance is 18pF.

What type of package is this crystal in?

It is a 4-SMD, No Lead surface mount package.
