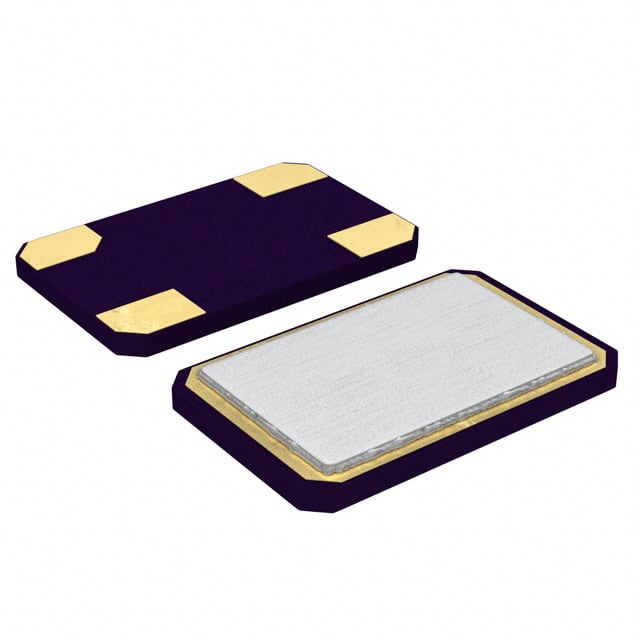

The ABM3B-15.360MHZ-B2-T is a ceramic SMD MHz crystal from Abracon LLC. It operates at a fundamental frequency of 15.36 MHz with a frequency tolerance of ±20 ppm and frequency stability of ±50 ppm over the operating temperature range of -20°C to +70°C. The crystal has a load capacitance of 18 pF and a maximum equivalent series resistance (ESR) of 70 Ω.
Designed for surface mount assembly, this crystal comes in a compact 4-SMD, no lead package measuring 5.00 mm x 3.20 mm with a maximum height of 1.1 mm. It features a ceramic package with a metal lid for high precision and reliability, and is suitable for reflow soldering. The drive level is 100 µW maximum, with 10 µW typical, and aging is ±5 ppm in the first year.
Typical applications include cellular telephones, pagers, communication and test equipment, high-density applications, and PCMCIA and wireless devices. The part is RoHS3 compliant.
