| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Halogen Free | |
| Height | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| SVHC Present | |
| Shunt Capacitance | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

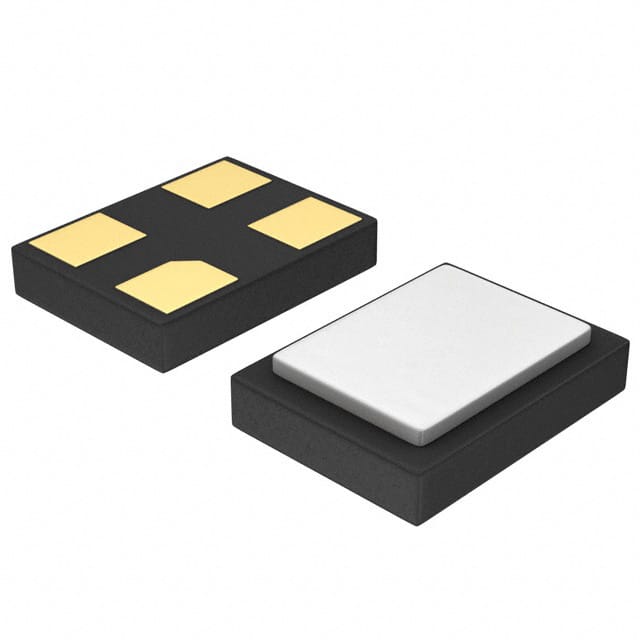

The Abracon ABM12-32.000MHZ-B2X-T3 is a miniature ceramic SMD crystal from the ABM12 series. It operates at a fundamental frequency of 32 MHz with a load capacitance of 8 pF. Equivalent series resistance is 200 Ω, and frequency tolerance and stability are both ±20 ppm. The crystal operates in fundamental mode and is designed for surface mount assembly in a 4-SMD, no lead package measuring 1.60 mm x 1.20 mm x 0.45 mm.
The operating temperature range is -20°C to +70°C, with storage temperature from -40°C to +85°C. Shunt capacitance is 5 pF. This component is RoHS3 compliant and unaffected by REACH with MSL Level 1. Typical applications include Bluetooth and wireless modules, computers, microprocessors, communication and test equipment, and high-density PCB designs. The part number suffix B2X indicates -20°C to +70°C operating temperature range and ±20 ppm stability/tolerance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.57 | $1.57 |
| 25+ | $1.49 | $1.49 |
| 50+ | $1.43 | $1.43 |
| 100+ | $1.37 | $1.37 |
| 250+ | $1.29 | $1.29 |
| 500+ | $1.24 | $1.24 |
| 1,000+ | $1.19 | $1.19 |
| 3,000+ | $1.11 | $1.11 |
| 6,000+ | $1.07 | $1.07 |
| 9,000+ | $1.04 | $1.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency is 32 MHz.
The load capacitance is 8 pF.
The operating temperature range is -20°C to +70°C.
Yes, it is RoHS3 compliant.
The package is 1.60 mm x 1.20 mm x 0.45 mm (4-SMD, No Lead).
The ESR is 200 Ω maximum.
