| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,910 pcs
|
1910 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load Capacitance | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Packaging Type | |
| Shunt Capacitance | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

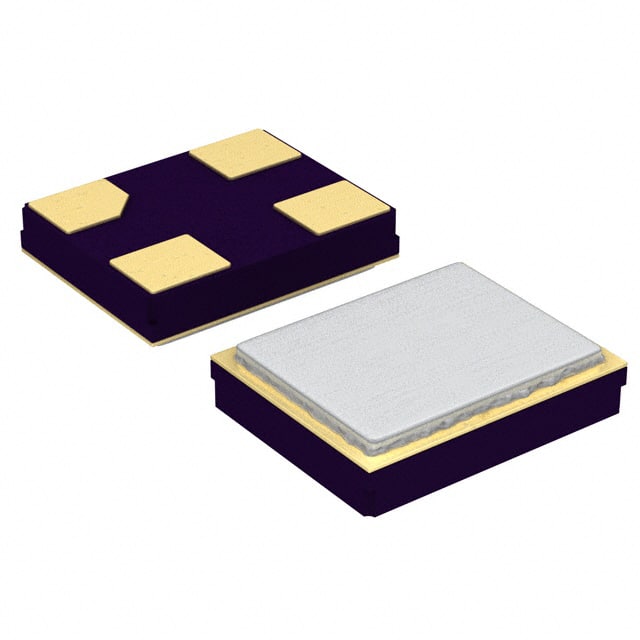

The ABM11-48.000MHZ-D2X-T3 is a 48 MHz fundamental mode quartz crystal from Abracon LLC. It operates with a load capacitance of 10 pF and offers a frequency tolerance and stability of ±20 ppm. The equivalent series resistance (ESR) is 60 Ω maximum, and the drive level ranges from 10 µW to 100 µW. Shunt capacitance is 7 pF typical, and insulation resistance is 500 MΩ minimum at 100 Vdc. Aging is ±5 ppm in the first year.
This crystal is housed in a hermetically sealed ceramic 4-SMD, No Lead package measuring 2.00 mm x 1.60 mm x 0.59 mm. It is designed for surface mount assembly and is suitable for RoHS compliant reflow soldering. The operating temperature range is -40°C to 85°C, with storage temperature also -40°C to 85°C.
Typical applications include cellular telephones, pagers, communication and test equipment, high-density PCMCIA cards, and wireless devices. The ultra-miniature package enables use in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 10+ | $1.16 | $1.16 |
| 25+ | $1.09 | $1.09 |
| 50+ | $1.05 | $1.05 |
| 100+ | $1.00 | $1.00 |
| 250+ | $0.95 | $0.95 |
| 500+ | $0.91 | $0.91 |
| 1,000+ | $0.87 | $0.87 |
| 3,000+ | $0.82 | $0.82 |
| 6,000+ | $0.78 | $0.78 |
| 9,000+ | $0.76 | $0.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 MHz.
10 pF.
-40°C to 85°C.
2.00 mm x 1.60 mm x 0.59 mm in a 4-SMD, No Lead package.
Yes, the datasheet states it is RoHS3 compliant.
60 Ω maximum.
±20 ppm.
