| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,342 pcs
|
6342 pcs | On Request | 1 | On Request | On Request | 18 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Industrial Grade | |
| Load Capacitance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel |

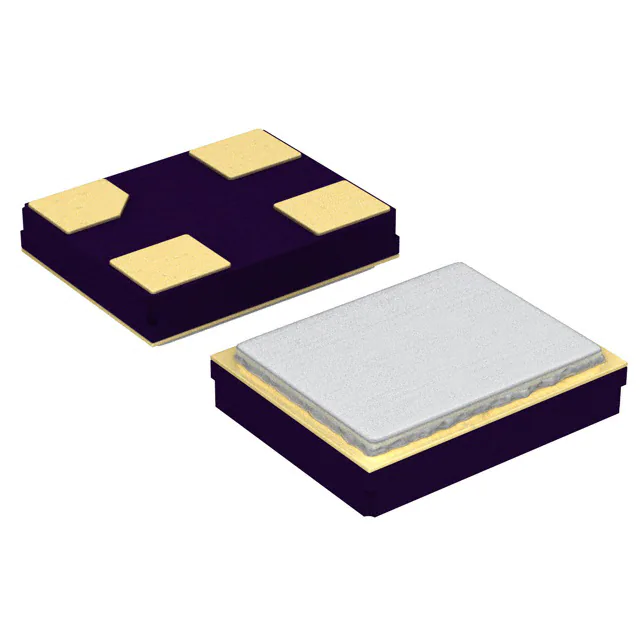

This Abracon LLC ABM11-25.000MHZ-D2X crystal operates at a nominal frequency of 25 MHz with a frequency stability and tolerance of ±20ppm. It features a load capacitance of 10pF and an equivalent series resistance (ESR) of 100 Ohms. The crystal operates in fundamental mode and is suitable for a wide temperature range from -40°C to 85°C.
Designed for surface mounting, this component comes in a compact 4-SMD, No Lead package with dimensions of 2.00mm x 1.60mm and a maximum seated height of 0.59mm. The packaging is available in Tape & Reel (TR) or Cut Tape (CT) formats.
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is rated as 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The frequency stability is ±20ppm.
The load capacitance is 10pF.
The ESR is 100 Ohms.
It uses a 4-SMD, No Lead package.
Yes, it is RoHS3 Compliant.
