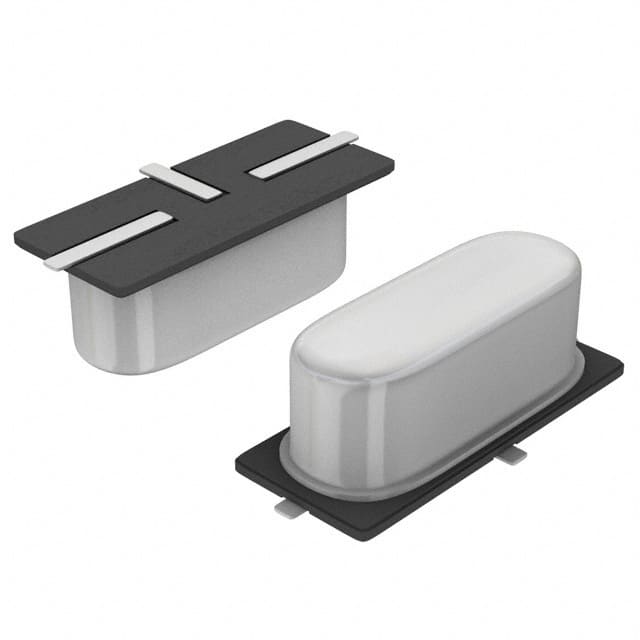

The ABLSG-7.3728MHZ-D2Y-T is a quartz crystal resonator from Abracon's ABLSG series, designed for surface-mount applications requiring a stable frequency reference. It operates at 7.3728 MHz in fundamental mode with a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm over the full operating temperature range of -40°C to +85°C.
Electrical characteristics include a load capacitance of 18 pF, maximum equivalent series resistance (ESR) of 100 Ω, shunt capacitance of 7 pF typical, and a drive level of 1 mW maximum (100 µW typical). The crystal is hermetically sealed for long-term reliability, with aging of ±5 ppm per year at 25°C.
The device is housed in a low-profile HC-49/US surface-mount package with 3 leads, where the third lead is grounded for EMI sensitive applications. Package dimensions are 11.40 mm x 4.70 mm x 4.20 mm. It is supplied in tape and reel packaging and is RoHS compliant with lead-free construction.
