ABLS2-3.6864MHZ-D4Y-T

The Abracon ABLS2-3.6864MHZ-D4Y-T is a surface mount quartz crystal from the ABLS2 series, designed for microprocessor and wireless applications. It operates at a fundamental frequency of 3.6864 MHz with a load capacitance of 18 pF. The crystal offers ±30 ppm frequency tolerance and ±30 ppm frequency stability over its operating temperature range of -40°C to +85°C. Maximum equivalent series resistance (ESR) is 180 Ω, and shunt capacitance is 7 pF maximum. Drive level is 100 µW typical, with aging of ±5 ppm in the first year.

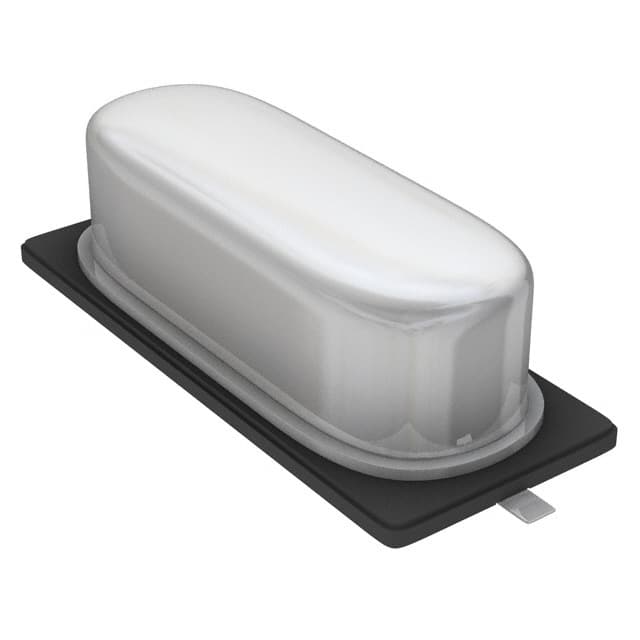

The crystal is housed in a low-profile HC-49/US surface mount package measuring 11.4 mm x 4.7 mm x 3.3 mm. It is hermetically sealed and moisture sensitivity level (MSL) is not applicable. The component is RoHS3 compliant and REACH unaffected. Typical applications include computers, modems, microprocessors, and wireless communication modules. The fundamental operating mode ensures reliable clock generation for timing circuits.
