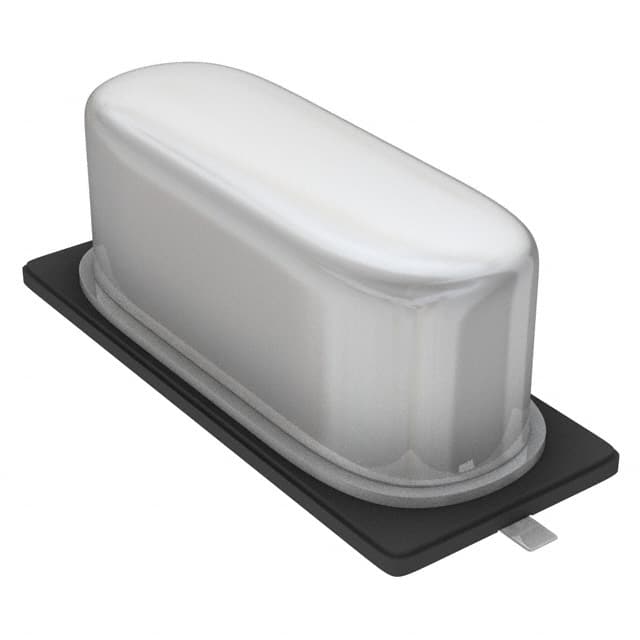

The ABLS-4.000MHZ-B2-T is a high-quality 4 MHz quartz crystal from Abracon LLC, part of the ABLS series. It operates in fundamental mode and is designed for surface mount applications. The crystal offers a frequency tolerance of ±20ppm at 25°C and frequency stability of ±50ppm over the operating temperature range of -20°C to +70°C.
Key electrical specifications include a load capacitance of 18pF, maximum equivalent series resistance (ESR) of 180 ohms, and a shunt capacitance of 7pF max. The drive level is rated at 1 mW maximum (100 µW typical), and aging is limited to ±5ppm in the first year. Insulation resistance is a minimum of 500 MΩ at 100 Vdc.
This crystal is packaged in a compact HC-49/US surface mount package with dimensions of 11.40mm x 4.70mm x 4.20mm. The device is suitable for reflow soldering and is RoHS compliant (Pb RoHS compliant as per datasheet). Typical applications include microprocessors, modems, computers, and wireless communication modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
| 10+ | $0.19 | $0.19 |
| 25+ | $0.18 | $0.18 |
| 50+ | $0.17 | $0.17 |
| 100+ | $0.16 | $0.16 |
| 250+ | $0.15 | $0.15 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.14 | $0.14 |
| 2,000+ | $0.14 | $0.14 |
| 3,000+ | $0.13 | $0.13 |
| 5,000+ | $0.13 | $0.13 |
| 7,000+ | $0.13 | $0.13 |
| 10,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 MHz.
18 pF.
-20°C to +70°C.
HC-49/US surface mount package.
Yes, it is RoHS3 compliant (Pb RoHS compliant as per datasheet).
180 ohms maximum.
±50 ppm over the operating temperature range.
