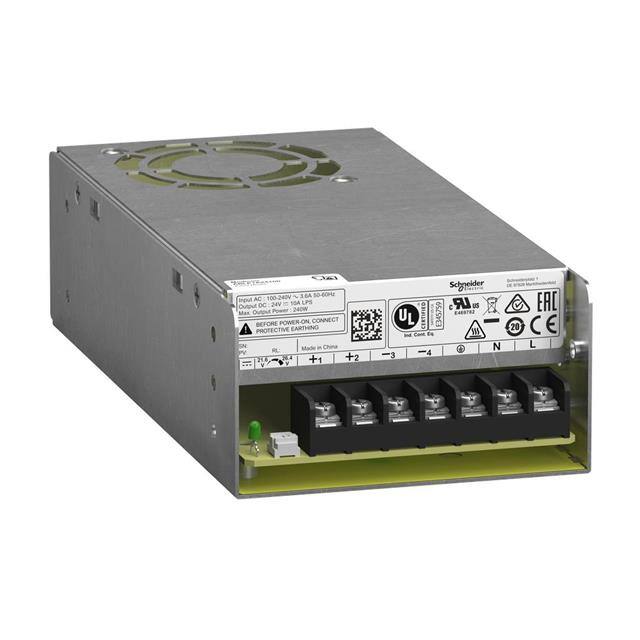

The Schneider Electric ABLP1A24100 is a regulated switch mode power supply from the Modicon Power Supply range. It is designed for panel mounting and features an aluminum enclosure.
This power supply accepts a nominal input voltage of 100-240V AC single phase, with input voltage limits of 85-264V AC. It provides a stable 24V DC output current of 10A, delivering a total power rating of 240W. The efficiency is rated at 87% at 230V AC.
Key electrical characteristics include a nominal network frequency of 50-60 Hz, a maximum leakage current of 1mA at 240V AC, and integrated input protection with a 6.3A fuse. It supports various network systems including TN, TT, and IT.
Mechanical specifications include dimensions of 190mm (depth) x 93mm (width) x 50mm (height) and a net weight of 0.85 kg. Mounting options include top hat DIN rails (TH35-15 and TH35-7.5) and panel mounting. The unit is designed to meet SELV standards according to EN/IEC 60950-1, EN/IEC 60204-1, and IEC 60364-4-41.
The output voltage is 24 V DC, adjustable between 21.6 and 26.4 V.
The maximum output current is 10 A.
The nominal input voltage is 100-240 V AC, with operating limits of 85-264 V AC.
The power rating is 240 W.
The efficiency is 87% at 230 V AC.
The dimensions are 190 mm in depth, 93 mm in width, and 50 mm in height.
It supports panel mounting and DIN rail mounting (TH35-15 and TH35-7.5).
