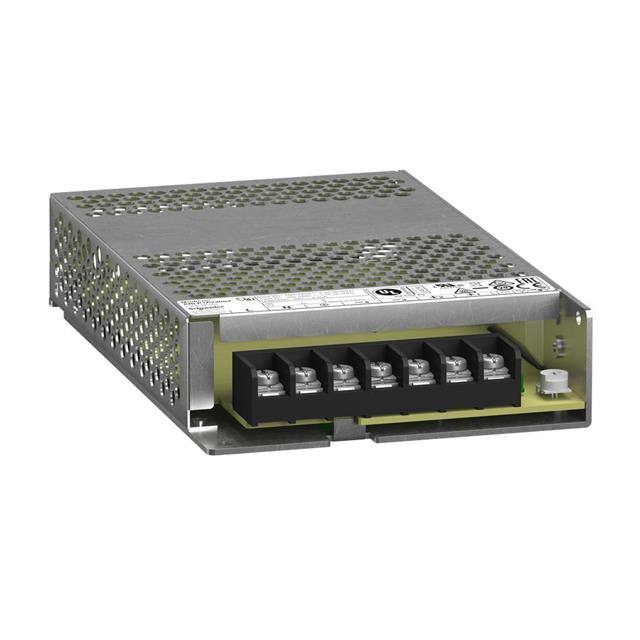

This Schneider Electric ABLP1A24062 is a regulated, switch-mode AC/DC power supply designed for enclosed applications. It delivers a stable 24V DC output with a maximum current of 6.25A, providing a total output power of 150W.
The unit features a wide input voltage range of 100-240V AC, making it suitable for global use. It operates with an efficiency of 88.8% at 230V AC and includes integrated input protection with a 4A fuse.
Designed for chassis mounting, this power supply has dimensions of 159mm x 97mm x 30mm. It supports various mounting options including DIN rail and panel mounting. The operating temperature range is -30°C to 70°C with derating.
Key electrical specifications include line and load regulation of less than 0.5% and 1% respectively, and a residual ripple of less than 170mV. The power supply is compliant with numerous safety and EMC standards, including EN/IEC 62368-1 and EN 61000 series.
The output voltage is 24 V DC.
The maximum output current is 6.25 A.
The nominal input voltage range is 100-240 V AC.
The rated output power is 150 W.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 159mm (Depth) x 97mm (Width) x 30mm (Height).
