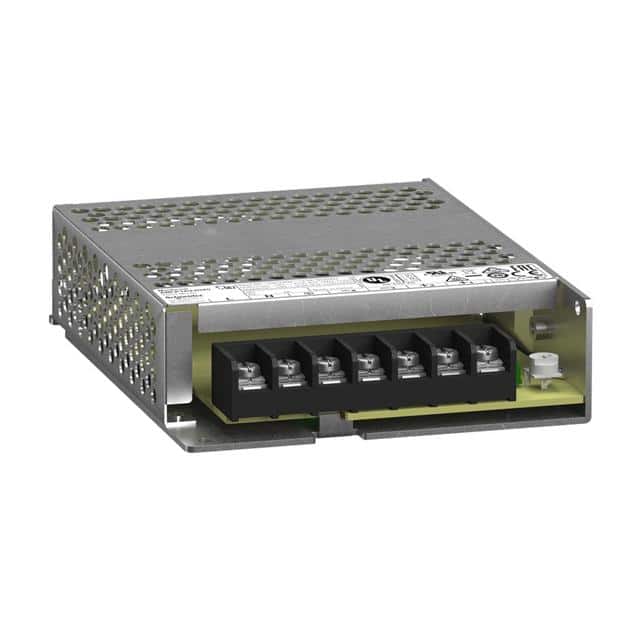

This Schneider Electric ABLP1A24045 is a regulated switch mode power supply from the Modicon Power Supply range. It is designed for panel mounting and accepts a nominal input voltage of 100-240V AC single phase, with input voltage limits of 90-264V AC. The power supply delivers a stable 24V DC output current of 4.5A, with an adjustable range of 21.6-26.4V.
Key electrical characteristics include a power rating of 100W input and 108W output, with an efficiency of 89% at 230V AC. It features automatic reset protection against overload, short-circuits, over-temperature, and overvoltage. The unit operates within a temperature range of -30°C to 70°C with derating.
Mechanical specifications include dimensions of 129mm x 97mm x 30mm and an aluminum enclosure. Connections are made via screw terminals. The power supply is compatible with various DIN rail mounting standards and panel mounting.
This power supply meets several safety and environmental standards, including EN/IEC 60950-1, EN/IEC 60204-1, and IEC 60364-4-41 for SELV compliance. It also holds product certifications such as CE, CULus, EAC, KC, and CB Scheme.
The output voltage is 24 V DC, adjustable between 21.6 and 26.4 V.
The maximum output current is 4.5 A.
The nominal input voltage is 100-240 V AC, with input voltage limits of 90-264 V AC.
The efficiency is 89% at 230 V AC.
The dimensions are 129.0mm in length, 97.0mm in width, and 30.0mm in height.
It supports panel mounting and is compatible with Top hat type TH35-15 rail, TH35-7.5 rail, and Double-profile DIN rail.
The operating temperature range is -30°C to 70°C, with derating.
