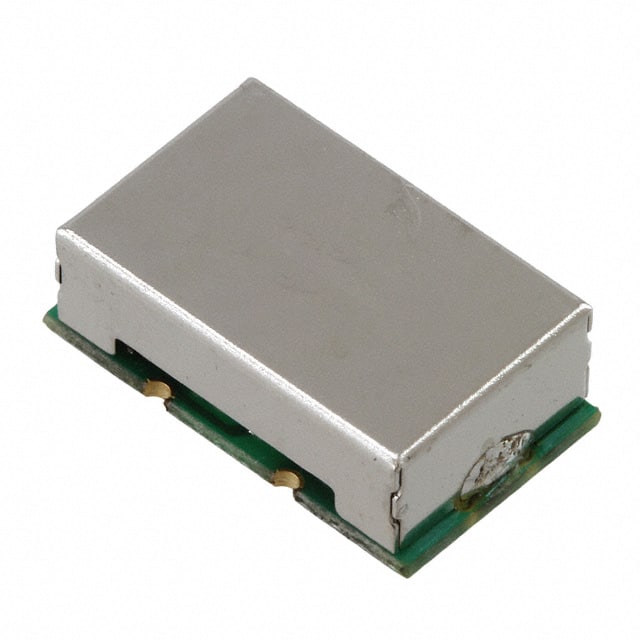

The Abracon ABLNO-V-156.250MHZ is a voltage-controlled crystal oscillator (VCXO) featuring a crystal base resonator. It delivers a 156.25 MHz LVCMOS output with a maximum frequency stability of ±18 ppm over the full -40°C to +85°C operating temperature range. The device operates from a 3.3V nominal supply voltage (3.135V to 3.465V range) and draws a maximum supply current of 40 mA.
This oscillator offers ultra-low phase noise performance, with typical values of -141 dBc/Hz at 1 kHz offset and -160 dBc/Hz at 10 kHz offset (extrapolated from 100 MHz carrier data). RMS jitter is less than 100 fs typical (12 kHz to 20 MHz integration bandwidth). Aging is specified at ±2 ppm first year, ±5 ppm over 5 years, and ±7 ppm over 10 years.
The ABLNO-V-156.250MHZ is housed in a 4-SMD, No Lead surface mount package measuring 14.30 mm x 8.70 mm x 5.50 mm. It is suitable for applications requiring low phase noise and high frequency stability, such as satellite modems, military communications, avionics, and test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.67 | $31.67 |
| 10+ | $27.53 | $27.53 |
| 25+ | $26.04 | $26.04 |
| 50+ | $24.97 | $24.97 |
| 100+ | $23.94 | $23.94 |
| 250+ | $23.34 | $23.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.135 V to 3.465 V, nominal 3.3 V.
4-SMD, No Lead surface mount package.
-40°C to +85°C.
Yes, it is listed as RoHS3 Compliant (unverified).
156.25 MHz.
±18 ppm maximum over -40°C to +85°C.
LVCMOS.
