| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package Type | |
| Shunt Capacitance | |
| Storage Temperature | |
| Type | |
| Width |

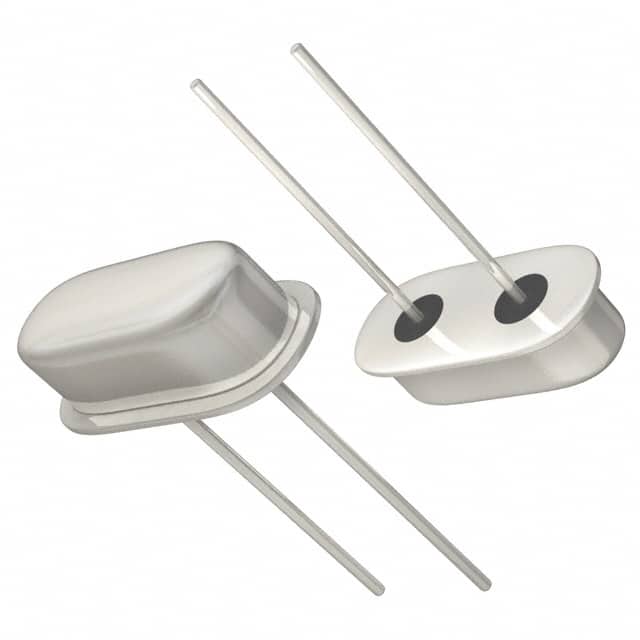

The ABL-11.0592MHZ-B2 is a fundamental mode quartz crystal from Abracon LLC's ABL series. It operates at 11.0592 MHz with a frequency tolerance of ±20 ppm and stability of ±50 ppm over the operating temperature range of -20°C to +70°C. The crystal requires an 18 pF load capacitance and has a maximum ESR of 50 Ω.
Housed in a compact HC-49/US through-hole package measuring 11.50 x 5.00 x 3.50 mm, this crystal is designed for reliable performance in microprocessor, modem, and clock applications. It features a fundamental operating mode and offers an aging rate of ±5 ppm per year. The drive level is specified at 100 µW to 1000 µW.
The ABL-11.0592MHZ-B2 is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). Its insulation resistance is at least 500 MΩ at 100 VDC. This crystal is a cost-effective choice for high-precision timing requirements in consumer electronics and computing systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.28 | $0.28 |
| 25+ | $0.26 | $0.26 |
| 50+ | $0.25 | $0.25 |
| 100+ | $0.24 | $0.24 |
| 250+ | $0.23 | $0.23 |
| 500+ | $0.22 | $0.22 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The crystal operates at 11.0592 MHz.
The package is HC-49/US through-hole.
The operating temperature range is -20°C to +70°C.
Yes, it is RoHS3 compliant.
The load capacitance is 18 pF.
The frequency tolerance is ±20 ppm.
The maximum ESR is 50 Ω.
