| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

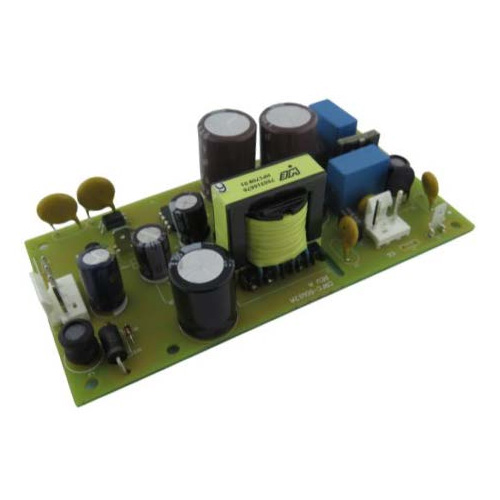

The Bel Power Solutions ABH50-1012 is a discontinued 50W AC-DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 85 to 264 VAC and provides a stable 12VDC output at 4.2A. This converter boasts 90% efficiency and features adjustable output and universal input capabilities.
Designed with an open frame construction, the ABH50-1012 is intended for chassis mounting, facilitating integration into various systems. Its dimensions are 127.0mm x 63.5mm x 34.0mm. The operating temperature range is -5°C to 50°C, and it offers an isolation voltage of 3 kV.
While RoHS3 compliant, MSL 1, and REACH unaffected, this product has been discontinued. For inquiries or concerns, please contact the sales team.
85 to 264 VAC.
12VDC at 4.2A.
-5°C to 50°C.
90%.
Chassis mount, open frame.
Yes, the output is adjustable.
127.0mm x 63.5mm x 34.0mm (5.00" x 2.50" x 1.34").
