| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

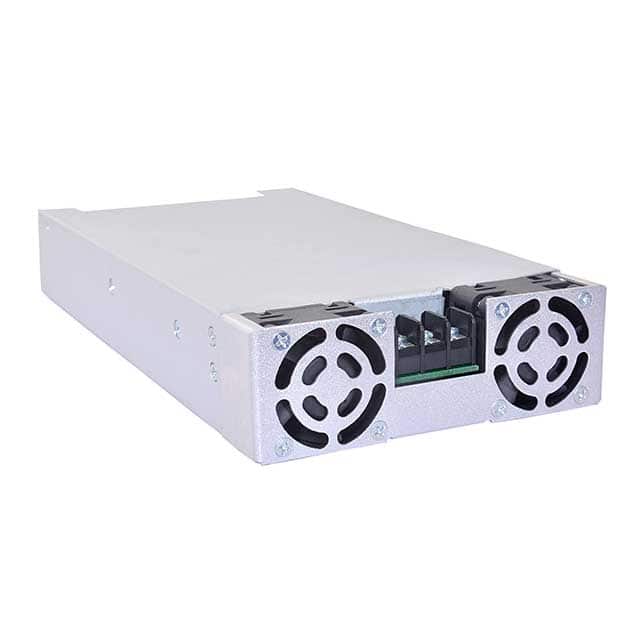

The Bel Power Solutions ABE1000-1T24 is an enclosed AC/DC converter designed for reliable power delivery. It offers a robust 1000W output power with a 24VDC single output voltage.
The converter operates with a universal input voltage range of 85-264 VAC and achieves a typical efficiency of 93% at 240 VAC. Key features include adjustable output, load sharing capability, Power Factor Correction (PFC), remote on/off, remote sense, and a standby output.
Designed for ease of integration, this unit is chassis mountable and has dimensions of 241.6mm x 127.0mm x 41.0mm. It is suitable for ITE (Commercial) applications and carries CE and NEMKO approval agency certifications.
Additional specifications include a hold-up time of 8 ms, line regulation of ±0.5%, and load regulation of ±1.0%. Over-current protection is hic-up type with auto-recovery, and over-voltage protection is latch type.
The ABE1000-1T24 has a main output voltage of 24 VDC and a standby output voltage of 5 VDC.
The ABE1000-1T24 provides 1000 W of continuous output power, with a peak capability of 1200 W for 1 ms.
The ABE1000-1T24 features a universal input voltage range of 85 to 264 VAC.
The efficiency is typically 88% at 120 VAC and 93% at 240 VAC.
The operating temperature range is -40°C to 70°C, with derating applied.
This AC/DC converter is designed for chassis mounting.
