| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| SVHC Present | |
| Type | |
| Voltage |

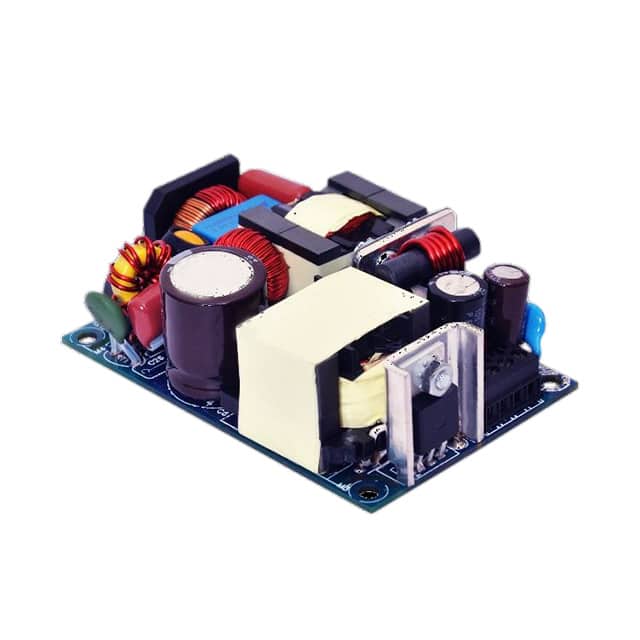

The Bel Power Solutions ABC75-1T24L is an open frame AC/DC converter designed for versatile applications. It delivers 75W of output power with a nominal 24V output voltage and a current rating of 3.12A. The converter features a wide universal AC input range of 85-264 VAC, making it suitable for global use.
With an efficiency rating of up to 91% for the 24V output, this power supply minimizes energy loss and facilitates easier thermal management. It operates within a temperature range of -40°C to 70°C with derating and includes essential protections such as over current, over voltage, and short circuit protection.
The compact 3 x 2 x 1 inch footprint and chassis mount type make it ideal for integration into various systems. Key features include adjustable output, DC input capability, and active Power Factor Correction (PFC).
This power supply is certified by multiple agencies including CB, CCC, CE, CSA, cUL, NEMKO, and UL, ensuring compliance with international standards. It is well-suited for ITE (Commercial) applications, industrial equipment, telecom, and datacom systems.
85-264 VAC and 390 VDC.
24V at 3.12A.
91% at full load for 24V output.
Over current protection (>110%), over voltage protection (110-140% latch type), and short circuit protection (hiccup mode).
-40°C to 70°C with derating.
CB, CCC, CE, CSA, cUL, NEMKO, UL.
76.2mm x 50.8mm x 25.4mm (3.00" x 2.00" x 1.00"), chassis mount.
