| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

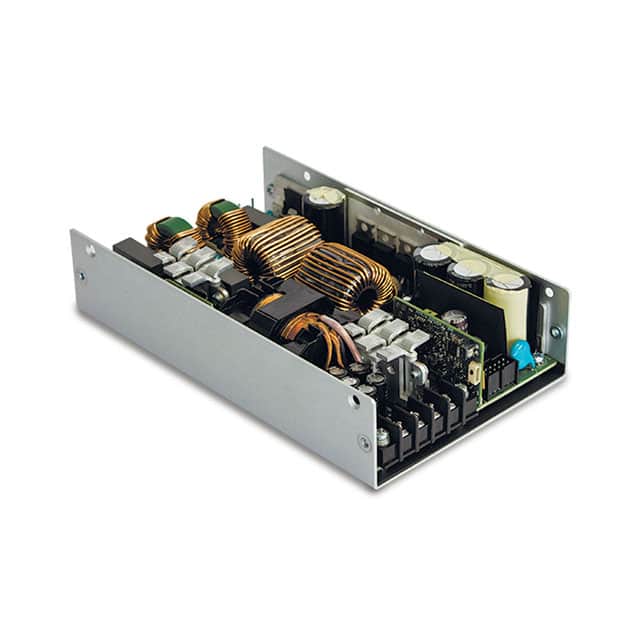

The ABC601 Series AC-DC power supply from Bel Power Solutions, specifically the ABC601-1T48-S model, delivers up to 600W of regulated output power. It operates with a universal input voltage range of 85-305 VAC, making it suitable for global applications.
This converter provides a nominal output voltage of 48 VDC at a maximum current of 12.5A. Key electrical features include high efficiency up to 94%, active Power Factor Correction (PFC) compliant with EN 61000-3-2, and low standby consumption. It also includes features like adjustable output, remote on/off, and remote sense capabilities.
The ABC601-1T48-S is housed in an enclosed chassis mount package with fan cooling. Its dimensions are 206.0mm x 107.0mm x 41.0mm. The unit is designed to meet stringent safety standards for IT and medical equipment, including IEC 60601-1 and IEC 62368-1, and displays the CE Mark.
Applications for this power supply include medical equipment, industrial process control, automation, telecommunications, and test and measurement equipment. It offers robust protection features and is RoHS 3 compliant.
The nominal output voltage is 48 VDC.
The maximum output current is 12.5 A.
The power rating is 600W.
It accepts a universal input voltage range of 85 to 305 VAC.
The operating temperature range is -20°C to 70°C with derating.
It is an enclosed, chassis mount package.
