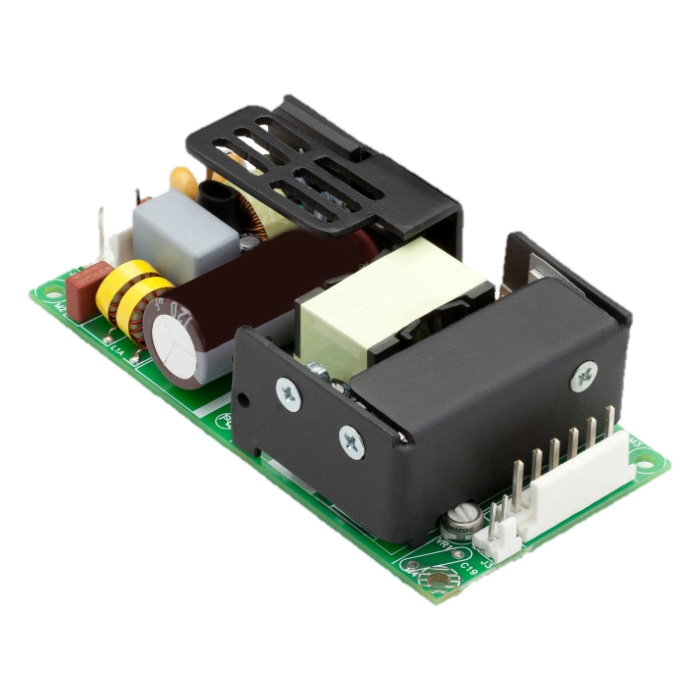

The Bel Power Solutions ABC60-1024G is an open-frame AC/DC converter designed for chassis mounting. It delivers 60W of power with a single output voltage ranging from 3.3 VDC to 48 VDC.
This converter operates with a wide universal input voltage range of 90 to 264 VAC, making it suitable for global applications. It offers an efficiency of 85% and features such as adjustable output, remote sense, and universal input. The operating temperature range is -20°C to 70°C with derating.
Key specifications include a current rating of 2.7A and dimensions of 101.6mm x 50.8mm x 30.5mm. The ABC60-1024G is CE approved and suitable for ITE (Commercial) applications. It is RoHS3 compliant and has an MSL of 1.
The ABC60-1024G has a power output of 60W.
The input voltage range is 90 to 264 VAC.
The output voltage can be adjusted between 3.3 VDC and 48 VDC.
The operating temperature range is -20°C to 70°C with derating.
The cooling type is convection.
The dimensions are 101.6mm x 50.8mm x 30.5mm.
Yes, the ABC60-1024G is RoHS3 compliant.
