| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

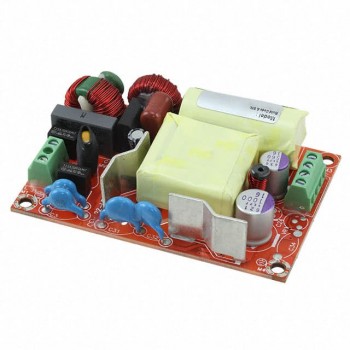

The Bel Power Solutions ABC41-1T24L-2 is an open frame AC/DC converter from the ABC41 series, delivering 40W of power with a 24V output voltage. It operates with a universal input voltage range of 85-264 VAC and offers a typical efficiency of 85%.
Designed for reliability, this converter features a wide operating temperature range of -40°C to 70°C with derating. Its dimensions are 76.2mm x 50.8mm x 24.7mm, making it suitable for chassis mounting.
Key specifications include a 4 kV isolation voltage and a typical MTBF of 2 million hours. The unit is compliant with IEC/EN/UL 62368-1 standards and is suitable for ITE (Commercial) applications.
The output voltage is 24V.
The maximum output current is 1.67A.
The power rating is 40W.
The typical efficiency is 85%.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 76.2mm L x 50.8mm W x 24.7mm H.
The input voltage range is 85-264 VAC.
