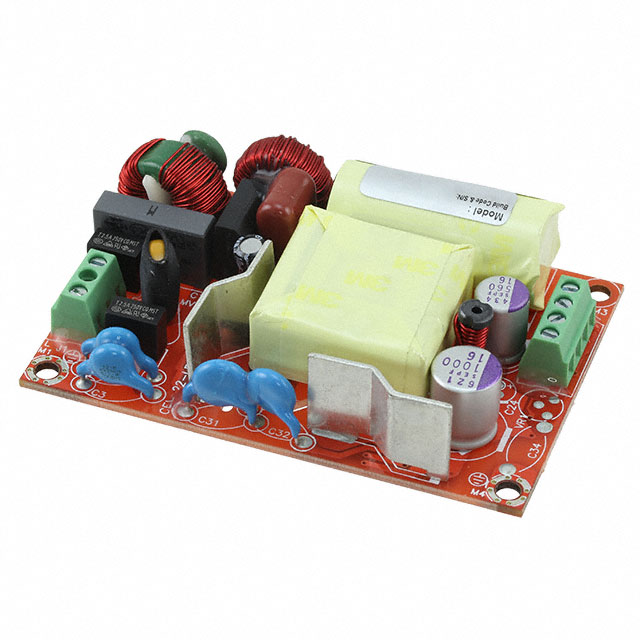

The ABC41-1T12L-2 from Bel Power Solutions is an open frame AC/DC converter designed for various applications. It offers a 40W output power with a nominal voltage of 12V and a maximum current of 3.33A. The converter operates with a universal input voltage range of 85-264 VAC and a frequency of 47-63 Hz.
Key electrical specifications include an efficiency of 85% typical and an isolation voltage of 4 kV. The operating temperature range is -40°C to 70°C with derating. The unit has a typical MTBF of 2 million hours and a no-load power consumption of less than 0.3W.
This converter is housed in a compact chassis mount package with dimensions of 76.2mm x 50.8mm x 24.7mm. It is suitable for ITE (Commercial) applications and carries approvals from CE, cUL, Nemko, and UL. The RoHS status is RoHS3 Compliant.
The output voltage is 12V.
The maximum output current is 3.33A.
The power rating is 40W.
The input voltage range is 85-264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 76.2mm x 50.8mm x 24.7mm.
The RoHS status is RoHS3 Compliant.
