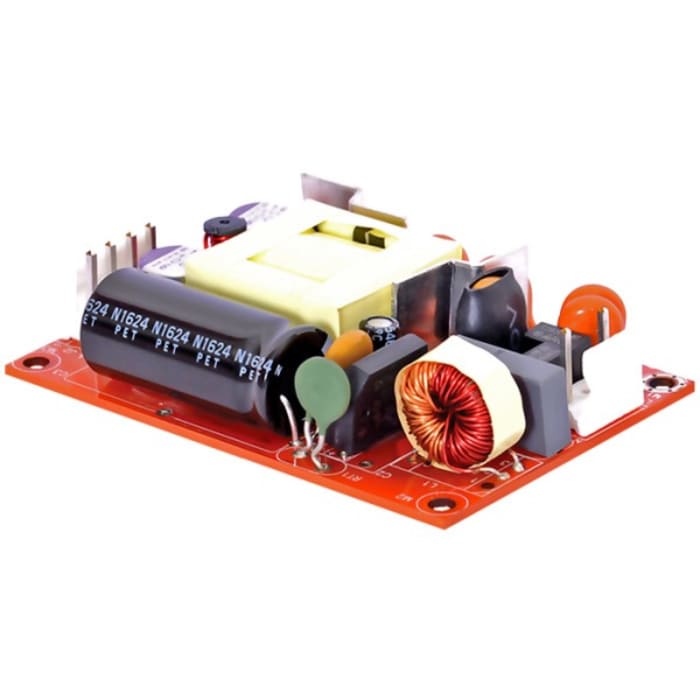

The Bel Power Solutions ABC41-1T12L is an open-frame AC/DC converter designed for efficient power conversion. It offers a 12V output voltage and a maximum power of 40W, operating with natural convection cooling.
This converter features a wide universal AC input range of 85-264 VAC and a typical efficiency of 85%. It is designed for PCB mounting, facilitating easy integration into embedded systems. The operating temperature range is -40°C to 70°C.
Key specifications include a 3.33A maximum output current and an isolation voltage of 4kV. The compact form factor measures 76.2mm x 50.8mm x 24.7mm. It meets IEC/EN/UL 62368-1 standards.
Applications for this power supply include instrumentation, lighting, industrial equipment, applied computing, renewable energy, test and measurement, robotics, and wireless communication.
The output voltage is 12V.
The maximum output current is 3.33A.
The power rating is 40W.
The typical efficiency is 85%.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 76.2mm x 50.8mm x 24.7mm.
Yes, it is IEC/EN/UL 62368-1 compliant.
