| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

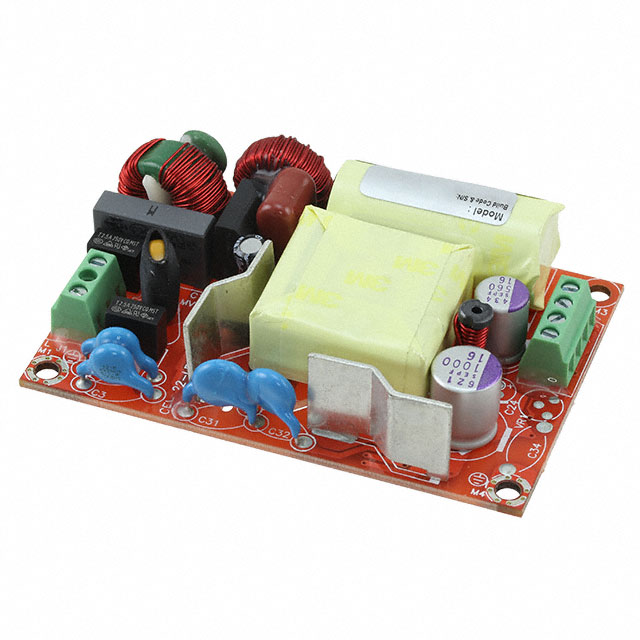

The Bel Power Solutions ABC41-1T05L-2 is an open frame AC/DC converter designed for various applications. It offers a 5V output voltage with a maximum current of 5A, delivering a total power of 40W. The converter operates with a universal input voltage range of 85-264 VAC and boasts a typical efficiency of 85%.
Key features include a 4kV isolation voltage and an operating temperature range of -40°C to 70°C with derating. The unit is chassis mountable and has dimensions of 76.2mm x 50.8mm x 24.7mm. It is suitable for ITE (Commercial) applications.
Compliance includes RoHS3, REACH Unaffected, and MSL 1 Unlimited. The ABC41 series is designed for reliability, with a typical MTBF of 2 million hours. This power supply is ideal for integration into industrial equipment, datacom, and telecom systems.
The ABC41-1T05L-2 provides a 5V output voltage at a maximum current of 5A.
The power rating for the ABC41-1T05L-2 is 40W.
The ABC41-1T05L-2 accepts a universal input voltage range of 85-264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 76.2mm x 50.8mm x 24.7mm.
The typical efficiency of the ABC41-1T05L-2 is 85%.
The isolation voltage rating is 4 kV.
