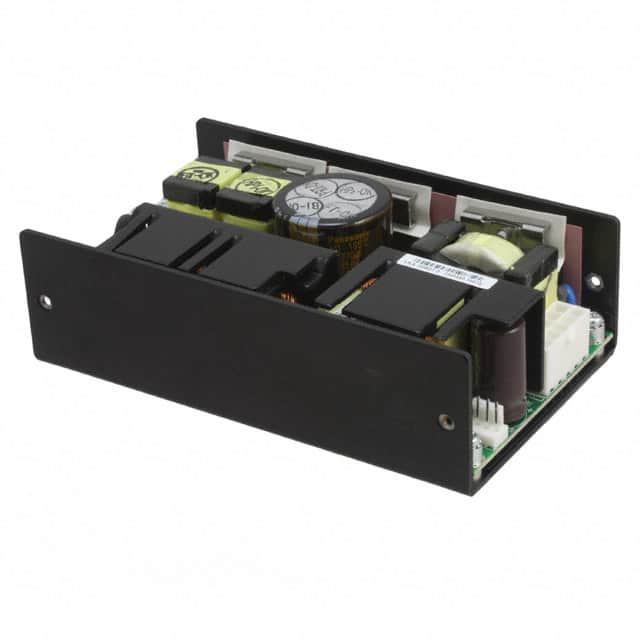

The Bel Power Solutions ABC400-1012G is part of the ABC400 series of compact and efficient AC-DC open frame power supplies. Designed for applications such as telecom, datacom, and industrial equipment, this power supply offers a universal AC input voltage range of 90-264 VAC and provides a nominal output voltage of 12 VDC at up to 23A, delivering 400W of power.
Key electrical specifications include active power factor correction and a high efficiency of up to 91% at 230 VAC, with a nominal efficiency of 90%. It operates within a temperature range of -10°C to 70°C with derating. The unit is safety approved to CSA/UL60950-1 and EN/IEC 62368-1 standards and meets EMC standards according to EN 55032.
This open frame power supply features a chassis mount type and has dimensions of 127.0mm x 76.2mm x 38.1mm. It includes protections such as over temperature, output overvoltage, overcurrent, and short circuit protection. The ABC400-1012G is RoHS3 compliant and has an MSL of 1.
The nominal output voltage is 12 VDC.
The ABC400-1012G provides a maximum output power of 400W.
The power supply accepts a universal AC input voltage range of 90-264 VAC.
The operating temperature range is -10°C to 70°C with derating.
It is safety approved to CSA/UL60950-1 and EN/IEC 62368-1.
