| Category | |
| Manufacturer Name | |
| Applications | |
| Cooling Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

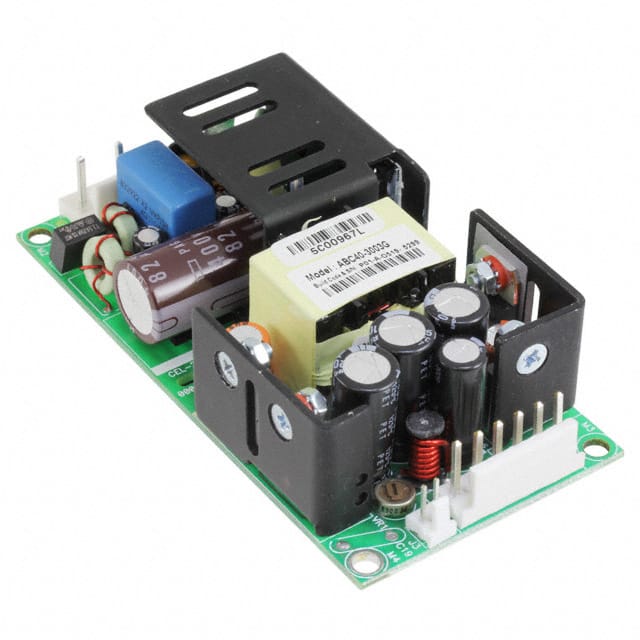

The Bel Power Solutions ABC40-3003G is a 40W AC/DC converter designed for chassis mounting. This open-frame unit operates with a wide universal input voltage range of 90 to 264 VAC, making it suitable for global applications. It provides multiple output voltages, including 3.3V, 5.2V, and -12.8V, with a total output current of 500 mA.
The converter boasts an efficiency of 85% and operates within a temperature range of -20°C to 70°C with derating. Its dimensions are 101.6mm x 50.8mm x 30.5mm. Key features include adjustable output, remote sense, and universal input.
This product has been discontinued. Recommended replacements include the EOS Power WLT40 Series.
The ABC40-3003G has a power rating of 40W.
The input voltage range is 90 to 264 VAC.
The ABC40-3003G provides multiple output voltages, including 3.3V, 5.2V, and -12.8V.
The operating temperature range is -20°C to 70°C, with derating.
The ABC40-3003G uses chassis mount.
Yes, the ABC40-3003G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
