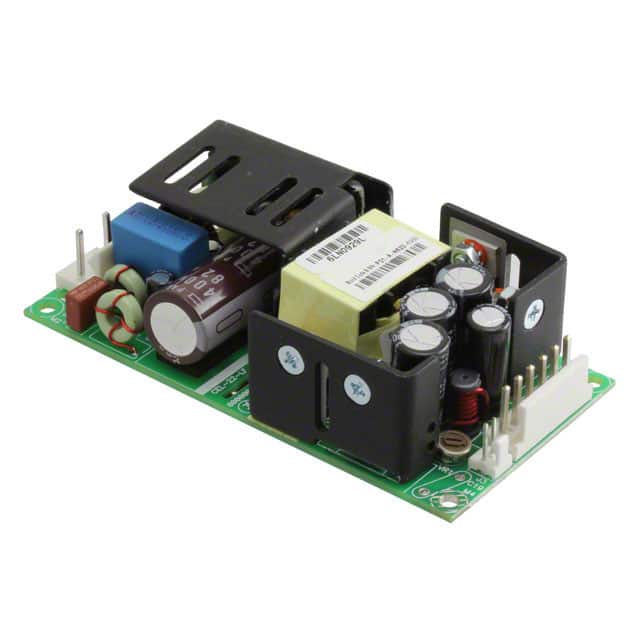

The Bel Power Solutions ABC40-3002G is a 40W AC/DC converter designed for ITE (Commercial) applications. It operates with a wide universal input voltage range of 90 to 264 VAC and provides multiple output voltages, including 3.3V, 14.6V, and -14.8V, with a maximum output current of 500 mA on one rail. The converter boasts an efficiency of 85% and features like adjustable output, remote sense, and standby output.
This open-frame unit is designed for chassis mounting, with dimensions of 101.6mm x 50.8mm x 30.5mm. It operates within a temperature range of -20°C to 70°C with derating and utilizes convection cooling. The ABC40-3002G is RoHS3 compliant and has an MSL of 1.
This product has been discontinued. A recommended replacement is the EOS Power WLT40 Series.
The power output is 40W.
The input voltage range is 90 to 264 VAC.
The output voltages range from 3.3 VDC to 48 VDC, including specific outputs of 14.6V and -14.8V.
The operating temperature range is -20°C to 70°C with derating.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
