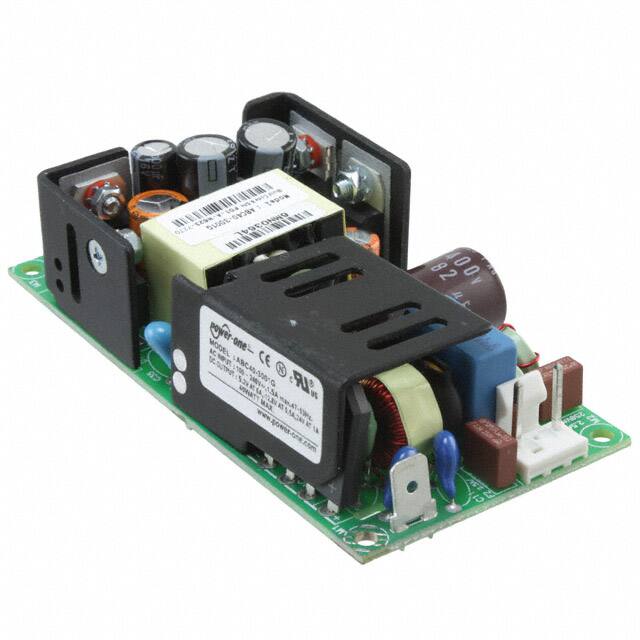

The Bel Power Solutions ABC40-3001G is an open frame AC/DC converter designed for commercial applications. It delivers a total output power of 40W with multiple output voltages: 5.2V, 23.8V, and -12.8V. The unit accepts a wide input voltage range from 90 VAC to 264 VAC, making it suitable for global use.
This converter features chassis mount capability and an open frame design for efficient integration into systems. Key electrical specifications include output currents of 6A for the 5.2V channel, 1A for the 23.8V channel, and 500mA for the -12.8V channel. It operates within a temperature range of -20°C to 70°C with derating.
Additional features include adjustable output, remote sense, standby output, and universal input. The dimensions are 101.6mm in length, 50.8mm in width, and 33.02mm in height. The efficiency is rated at 85% typical.
The ABC40-3001G has three output voltages: 5.2 VDC, 23.8 VDC, and -12.8 VDC.
The total output power for the ABC40-3001G is 40W.
The ABC40-3001G accepts an input voltage range of 90 VAC to 264 VAC.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 101.6mm in length, 50.8mm in width, and 33.02mm in height.
The ABC40-3001G uses chassis mount.
