| Category | |
| Manufacturer Name | |
| Applications | |
| Cooling Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

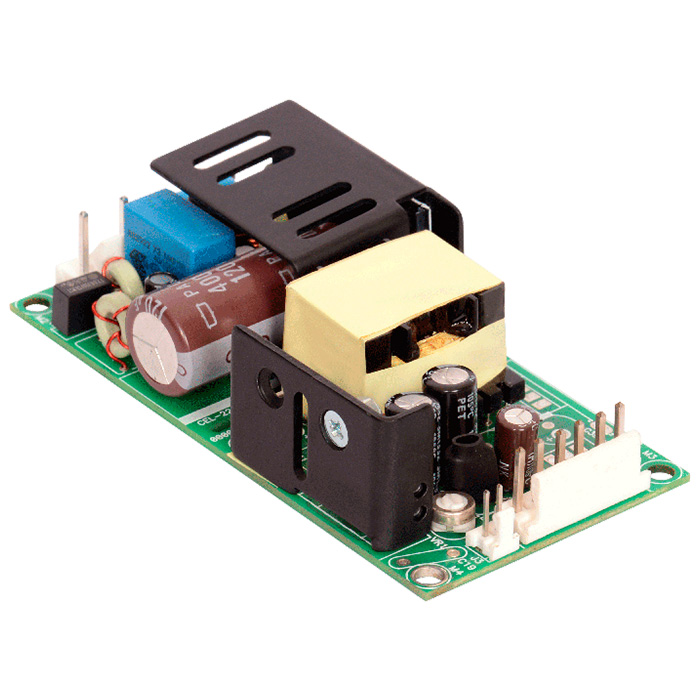

The Bel Power Solutions ABC40-3000G is an open-frame AC/DC converter designed for chassis mounting. It delivers 40W of power with a universal input voltage range of 90-264 VAC.
This converter offers multiple output voltages, including -12.8V, and features adjustable output, remote sense, and standby output capabilities. With an efficiency of 85% and convection cooling, it operates within a temperature range of -20°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 30.5mm. It is RoHS3 compliant and suitable for ITE (Commercial) applications.
This product has been discontinued. Recommended replacements include the EOS Power WLT40 Series.
The ABC40-3000G is rated for 40W output power.
The input voltage range is 90 to 264 VAC.
It provides an adjustable main output from 3.3 to 48 VDC and a -12.8V output.
The efficiency is 85%.
The operating temperature range is -20°C to +50°C, with derating up to 70°C.
The dimensions are 101.6mm x 50.8mm x 30.5mm (4.00" x 2.00" x 1.20").
The converter is chassis mount.
