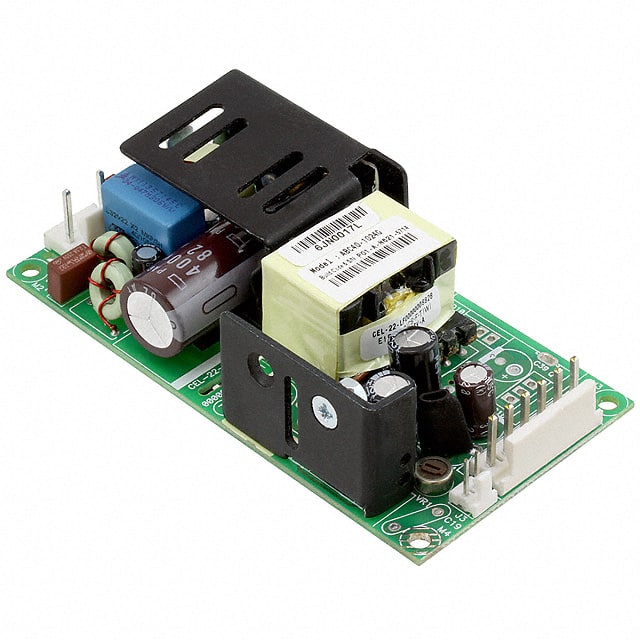

The Bel Power Solutions ABC40-1024G is a 40W AC/DC converter designed for various applications. It operates with a wide universal input voltage range of 90 to 264 VAC and provides a single output voltage ranging from 3.3 VDC to 48 VDC.
Key electrical specifications include a maximum current of 1.7A and an efficiency of 85%. The converter operates within a temperature range of -20°C to 70°C with derating. Its mechanical dimensions are 101.6mm in length, 50.8mm in width, and 30.5mm in height.
This unit is an open-frame, chassis mountable AC/DC converter. It features adjustable output, remote sense, standby output, and universal input capabilities. The product is RoHS3 compliant and has an MSL rating of 1.
This product has been discontinued. Recommended replacements include the EOS Power WLT40 Series.
90 to 264 VAC.
3.3 to 48 VDC adjustable.
Open frame chassis mount, 101.6mm x 50.8mm x 30.5mm.
-20°C to 70°C with derating.
85%.
Convection cooling.
Adjustable output, remote sense, standby output, universal input.
