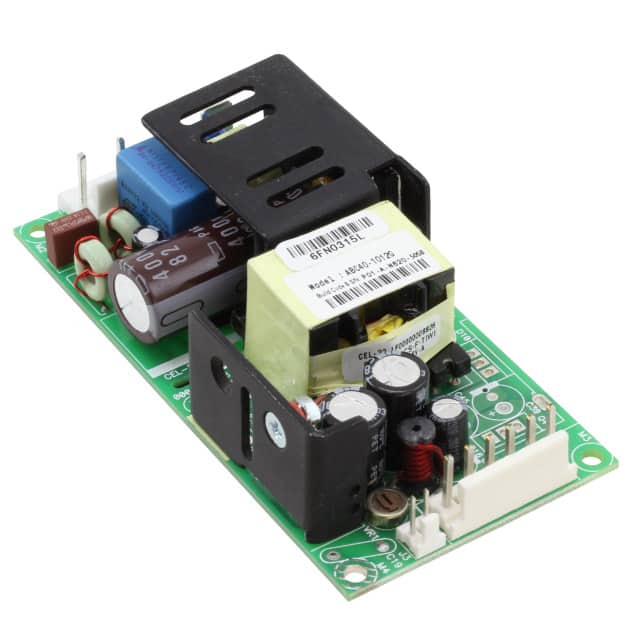

The Bel Power Solutions ABC40-1012G is a 42W AC/DC converter designed for ITE (Commercial) applications. It operates with a wide universal input voltage range of 90-264 VAC and provides a single output voltage ranging from 3.3 VDC to 48 VDC, with a maximum current of 3.5 A.
Key electrical specifications include an efficiency of 85% and a voltage rating of 4.242 kV. The converter has a power rating of 42W. It is designed with an open frame and chassis mount for easy integration into systems.
Thermal specifications indicate an operating temperature range of -20°C to 70°C with derating. Mechanical dimensions are 101.6mm in length, 50.8mm in width, and 30.5mm in height.
This product has been discontinued. Recommended replacements include the EOS Power WLT40 Series.
The power output is 42W.
The input voltage range is 90 to 264 VAC.
The output voltage can range from 3.3 VDC to 48 VDC.
The maximum current rating is 3.5 A.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm in length, 50.8mm in width, and 30.5mm in height.
The ABC40-1012G is RoHS3 Compliant.
