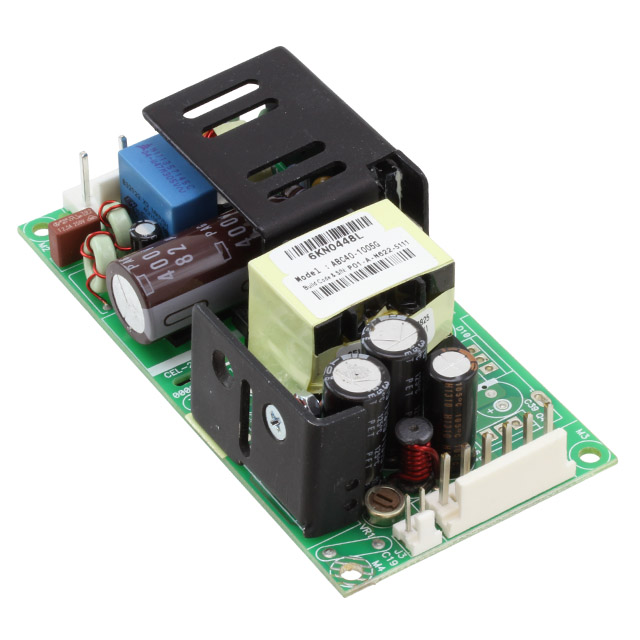

The Bel Power Solutions ABC40-1005G is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 5.1V with a maximum current of 8A, resulting in a total power output of 40W. The converter operates with an efficiency of 85% and features universal input voltage ranging from 90 to 264 VAC or 120 to 370 VDC.
Key features include adjustable output, remote sense, and standby output capabilities, making it versatile for various designs. The unit is chassis mountable with dimensions of 101.6mm x 50.8mm x 30.5mm. It operates within a temperature range of -20°C to 70°C with derating.
This AC/DC converter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is suitable for applications requiring a stable and efficient power conversion solution within commercial environments.
90~264 VAC or 120~370 VDC.
5.1V at 8A.
40W.
-20°C to 70°C with derating.
4.242 kV.
85%.
Chassis mount.
