| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

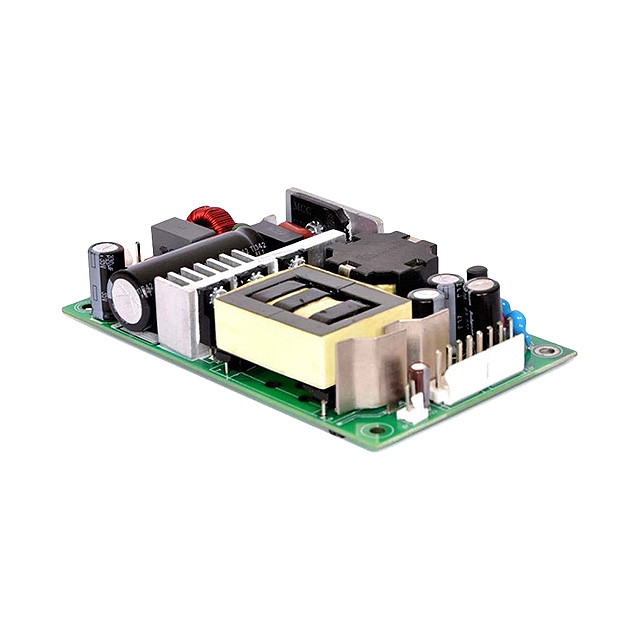

The Bel Power Solutions ABC350-1048L is an open frame AC DC converter designed for ITE (Commercial) applications. It provides a single 48V output with a current rating of 4.17A, delivering 200W of power, or up to 350W with forced air.
This converter operates with a wide input voltage range of 85 to 264 VAC and boasts an efficiency of 94%. Key features include adjustable output, DC input capability, PFC, standby output, and universal input. The isolation voltage is rated at 3 kV.
Measuring 127.0mm x 76.2mm x 25.4mm, the ABC350-1048L is designed for chassis mounting. It operates within a temperature range of -40°C to 70°C with derating. The unit is RoHS3 compliant and has an MSL of 1 Unlimited.
The input voltage range is 85 to 264 VAC.
It provides a single 48V output at 4.17A.
It is rated for 200W continuous, or 350W with forced air cooling.
The operating temperature range is -40°C to 70°C with derating.
The efficiency is 94%.
The input-to-output isolation voltage is 3 kV.
The dimensions are 127.0 mm x 76.2 mm x 25.4 mm (5.00" x 3.00" x 1.00").
