| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

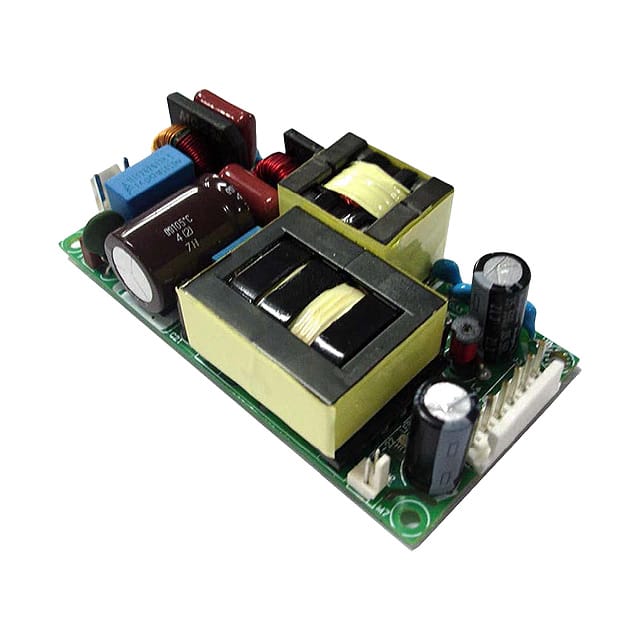

The Bel Power Solutions ABC225-1015L is an open frame AC/DC converter designed for various applications requiring a stable 15V output. It offers up to 113W of power under convection cooling and can deliver up to 225W with forced air cooling.
This converter operates with a wide universal AC input range of 85-264 VAC, making it suitable for global use. Key electrical specifications include efficiencies up to 94% and a low no-load power consumption of less than 0.5W. The operating temperature range is -40°C to 70°C with derating.
Designed for chassis mounting, the ABC225-1015L has a compact footprint. It is certified to IEC/EN/UL 62368-1 and CCC standards, and is RoHS compliant. This power supply is ideal for industrial equipment, telecom, and datacom applications.
Features include PFC, standby output, and a DC input capability. The unit also includes a 12V/0.5A fan output and thermal shut-down protection for enhanced reliability.
The nominal output voltage is 15 V.
The input voltage range is 85-264 VAC.
Maximum output power is 120 W under convection cooling at 50°C, and 225 W with 13 CFM forced air.
The operating temperature range is -40°C to 70°C with derating.
Typical efficiency is up to 94%.
Chassis mount.
