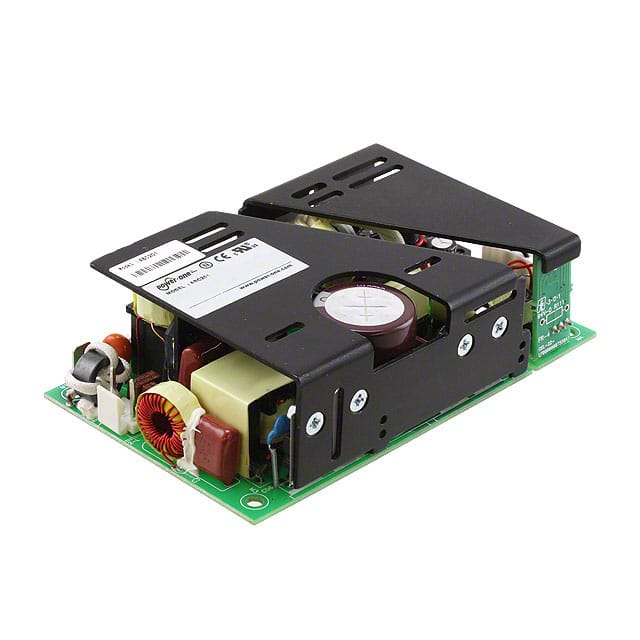

The Bel Power Solutions ABC201-1024G is an AC/DC converter from the ABC201 series. It provides a single output of 24 VDC with a convection rating of 160 W, increasing to 200 W with forced air cooling. Peak power of 250 W for up to 2 seconds is also supported.
The converter accepts a wide universal input range of 90-264 VAC or 120-390 VDC. Key features include 12 V fan output at 5 A, 5 V standby output, remote sense capability, and output voltage adjustability. Efficiency typically reaches 84% at 120 VAC and 86% at 230 VAC.
This open frame supply is designed for chassis mounting with JST header connectors. It measures 127.0 x 76.2 x 38.1 mm (5.00 x 3.00 x 1.50 inches). It is suitable for ITE, telecom, datacom, and industrial applications.
24 VDC.
90-264 VAC or 120-390 VDC.
160 W convection, 200 W forced air (peak 250 W for 2 seconds).
-20°C to 70°C with derating.
Open frame chassis mount with JST header connector.
RoHS3 compliant (unverified).
Protection Class I with earthing tab (Class II available with -2 suffix).
