| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

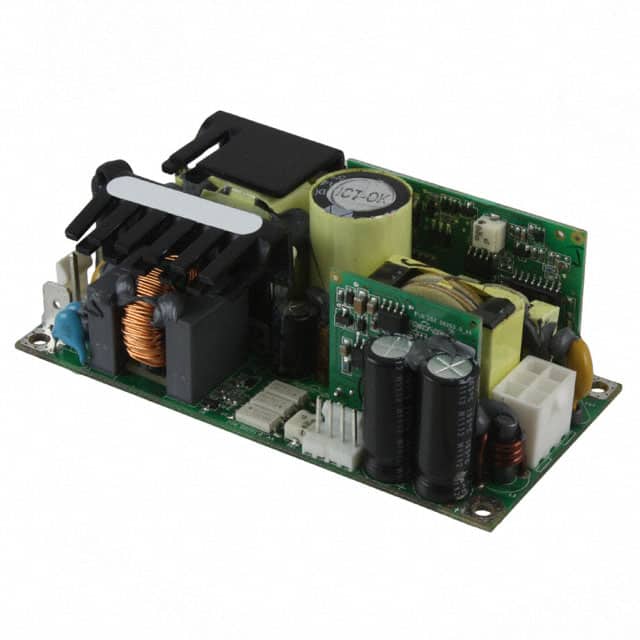

The ABC200-1012G from Bel Power Solutions is part of the ABC200 Series of compact and efficient AC-DC power supplies. Designed for industrial, telecom, and datacom applications, this open-frame converter provides a 12VDC output at up to 200W.
Key electrical specifications include a universal AC input voltage range of 90-264 VAC, active power factor correction, and high efficiency up to 91% at 230 VAC. It features over-temperature, output overvoltage, overcurrent, and short-circuit protection. The unit meets EMC Standard EN 55032 and is safety approved to CSA/UL 60950-1 and EN/IEC 62368-1.
With a high power density design of 15 W/in3, the ABC200-1012G offers a compact size of 4.0 x 2.0 x 1.44 inches, making it suitable for space-constrained applications. It is designed for chassis mounting.
This series meets international information technology safety standards and is CE Marked for the European Low Voltage Directive (LVD). It is also RoHS Compliant.
The nominal output voltage is 12 VDC.
The maximum output power is 200W.
The universal AC input voltage range is 90-264 VAC.
The efficiency is up to 91% at 230 VAC.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 101.6mm (L) x 50.8mm (W) x 36.6mm (H).
