| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,875 pcs
|
1875 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Insulation Resistance | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Shunt Capacitance | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Width |

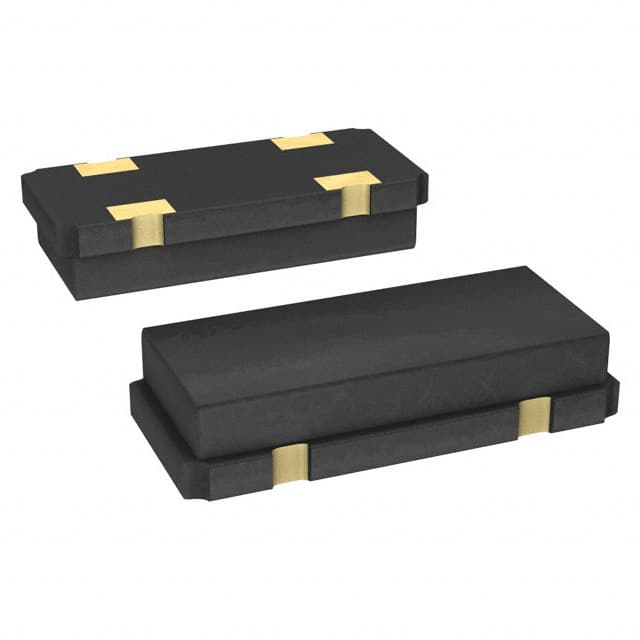

The ABC2-7.3728MHZ-4-T is a low frequency SMD microprocessor crystal from Abracon LLC's ABC2 series. It operates at a nominal frequency of 7.3728 MHz in fundamental mode with an 18 pF load capacitance. The crystal offers a frequency tolerance of ±50 ppm at +25°C and a frequency stability of ±30 ppm over the operating temperature range of -10°C to +60°C.
This crystal features a maximum equivalent series resistance (ESR) of 50 Ω, a typical shunt capacitance of 7 pF, and a drive level of 100 µW. It is designed for surface mount assembly in a compact 4-SMD, No Lead package measuring 11.8 mm x 5.5 mm x 1.9 mm. The component is RoHS II compliant and suitable for reflow soldering processes.
Typical applications include communication equipment, measuring devices, and commercial or industrial electronic circuits requiring a stable and reliable clock reference. The ceramic package provides excellent environmental and heat resistance, making it suitable for high-density circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.32 | $2.32 |
| 10+ | $2.02 | $2.02 |
| 25+ | $1.91 | $1.91 |
| 50+ | $1.83 | $1.83 |
| 100+ | $1.75 | $1.75 |
| 250+ | $1.66 | $1.66 |
| 500+ | $1.59 | $1.59 |
| 1,000+ | $1.52 | $1.52 |
| 2,000+ | $1.46 | $1.46 |
| 3,000+ | $1.42 | $1.42 |
| 5,000+ | $1.38 | $1.38 |
| 7,000+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal frequency is 7.3728 MHz.
The load capacitance is 18 pF.
The operating temperature range is -10°C to +60°C.
Yes, it is RoHS II compliant.
The package is 4-SMD, No Lead, surface mount.
The frequency tolerance is ±50 ppm at +25°C.
The maximum equivalent series resistance is 50 Ω.
