| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Compliance | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

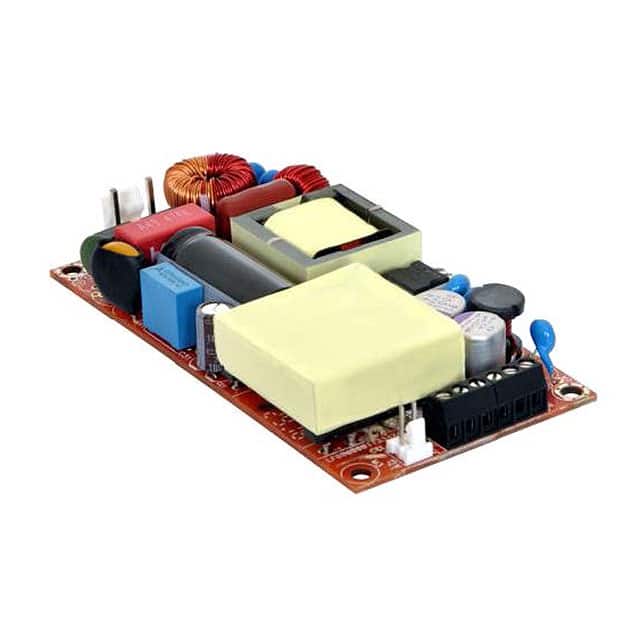

The Bel Power Solutions ABC180-1024L is an open frame AC/DC converter designed for various industrial applications. It offers a 24V output voltage and can deliver up to 120W of power with natural convection cooling, or an enhanced 180W when utilizing forced air cooling (13 CFM).
This converter features a wide universal AC input range of 80-264 VAC and includes Power Factor Correction (PFC). Its operating temperature range is -40°C to 70°C, with derating applied. The unit is built with a compact footprint, measuring 4.00 x 2.00 x 0.75 inches, making it suitable for space-constrained designs.
Key electrical specifications include a typical efficiency of 90% for the 24V output, line regulation of ±0.5%, and load regulation of ±1%. It also boasts a high MTBF of 3.37 million hours and a no-load power consumption of less than 0.5W. The ABC180-1024L complies with IEC/EN/UL 62368-1 standards.
Designed for chassis mounting, this AC/DC converter is ideal for applications in ITE (Commercial) equipment, industrial systems, telecom, and datacom. Its robust design and compliance with safety standards ensure reliability in demanding environments.
80-264 VAC, also capable of 390 VDC.
24V output; 120W convection, 180W forced air.
-40°C to 70°C with derating.
90% typical.
IEC/EN/UL 62368-1 compliant, CE approved.
101.6mm x 50.8mm x 19.1mm (4.00" x 2.00" x 0.75").
Yes, built-in PFC, power factor >0.95 at 115VAC.
