| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

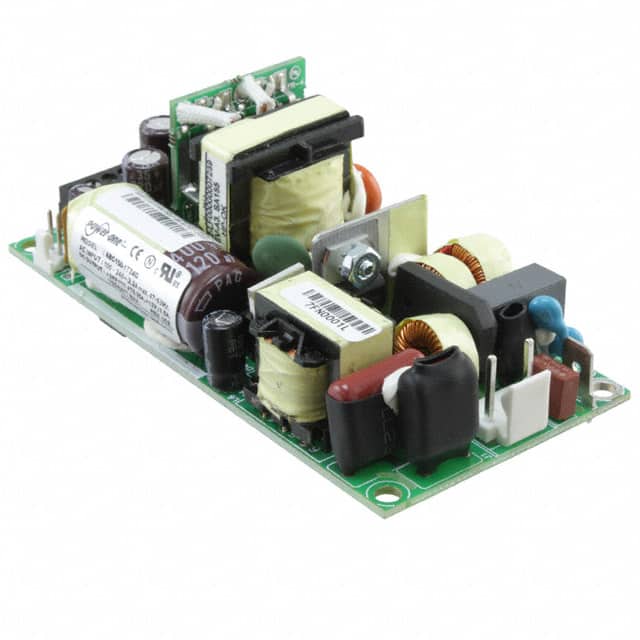

The Bel Power Solutions ABC150-1T24G is an open frame AC/DC power supply designed for industrial applications. It features a wide universal input range of 90-264 VAC and provides a single 24VDC output.
With a maximum output power of 150W under forced-air cooling (110W convection), this converter boasts high efficiency, typically 86% at 230 VAC. It operates within a temperature range of -20°C to 70°C with derating and offers features like adjustable output and DC input capability.
The compact form factor measures 101.6mm x 50.8mm x 33.6mm, making it suitable for chassis mounting. It meets IEC/EN/UL 62368-1 standards and is RoHS3 compliant.
This power supply is ideal for telecom, datacom, and industrial equipment, offering reliable performance and high power density.
The ABC150-1T24G provides a 24 VDC output voltage.
The maximum output power is 150W with forced-air cooling and 110W with convection cooling.
The ABC150-1T24G accepts a universal input voltage range of 90-264 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 33.6mm.
The efficiency is typically 84% at 120 VAC and 86% at 230 VAC.
