| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

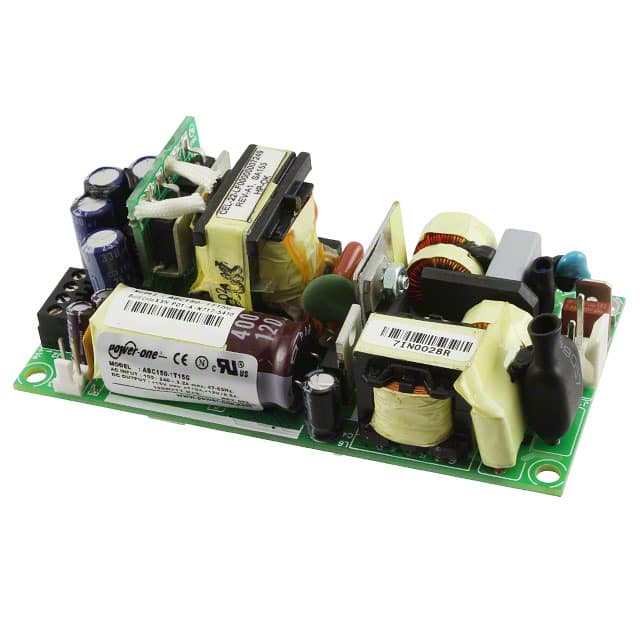

The Bel Power Solutions ABC150-1T15G is an open frame AC/DC power supply designed for various applications including telecom, datacom, and industrial equipment. It offers a universal input range of 90-264 VAC and provides a 15VDC output voltage with a maximum load of 6.67A, delivering 100W under convection cooling and up to 150W with forced air.
This converter boasts high efficiency, typically 86% at 230 VAC, minimizing power loss and facilitating easier thermal management. It operates within a temperature range of -20°C to 70°C with derating and meets IEC/EN/UL 62368-1 standards. The unit is available in Class I (with earthing tab) or Class II (without earthing tab) protection classes.
With a compact form factor of 4 x 2 x 1.3 inches, the ABC150-1T15G is suitable for chassis mounting. It features low conducted and radiated noise, making it a reliable choice for demanding applications. Optional accessories like a metal cover kit are also available.
The output voltage is 15 VDC.
The maximum power output is 110W under convection cooling and 150W with forced air.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 70°C with derating.
The efficiency is typically 84% at 120 VAC and 86% at 230 VAC.
The dimensions are 101.6mm (4.00") L x 50.8mm (2.00") W x 33.6mm (1.32") H.
The product is listed as RoHS3 Compliant.
