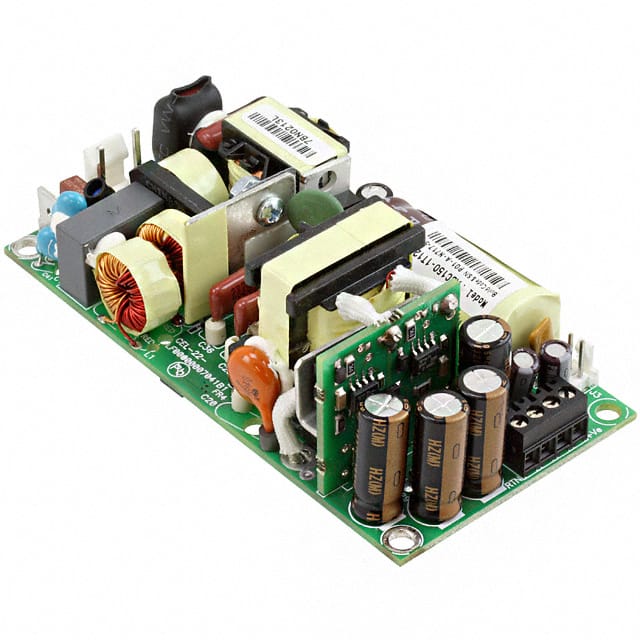

The Bel Power Solutions ABC150-1T12G is an open frame AC/DC converter designed for various applications including telecom, datacom, and industrial equipment. It provides a 12VDC output voltage and can deliver up to 110W under convection cooling or 150W with forced-air cooling.
This converter features a wide universal input voltage range of 90-264 VAC, ensuring compatibility across different power grids. It boasts high efficiency, typically 86% at 230 VAC, minimizing power loss and facilitating easier thermal management. The unit operates within a temperature range of -20°C to 70°C with derating.
With a compact form factor measuring 4.00" x 2.00" x 1.32", the ABC150-1T12G is suitable for chassis mounting. It complies with IEC/EN/UL 62368-1 standards and is RoHS3 compliant. Protection class options include Class I with an earthing tab or Class II without an earthing tab.
The output voltage is 12 VDC.
The maximum output power is 110W with convection cooling and 150W with forced-air cooling.
The universal input voltage range is 90-264 VAC.
The typical efficiency is 86% at 230 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 33.6mm (4.00" L x 2.00" W x 1.32" H).
Yes, it is RoHS3 Compliant.
