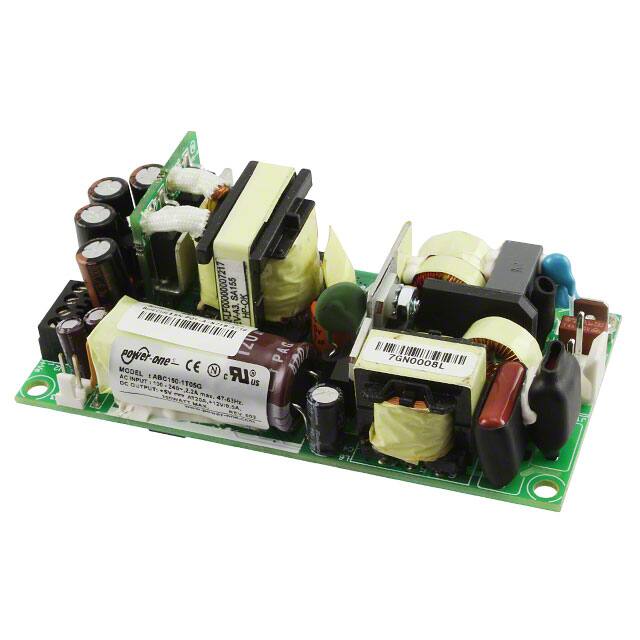

The Bel Power Solutions ABC150-1T05G is an open frame AC/DC power supply designed for various applications, including ITE (Commercial). It features a universal input voltage range of 90-264 VAC and provides a stable 5VDC output.
With a maximum output power of 150W under forced-air cooling (80W convection), this converter boasts high efficiency, reaching up to 86% at 230 VAC. Key electrical specifications include a low input current, minimal no-load power consumption, and good line and load regulation.
The unit operates within a temperature range of -20°C to 70°C with derating and has a compact form factor measuring 101.6mm x 50.8mm x 33.6mm. It is chassis mountable and compliant with IEC/EN/UL 62368-1 standards, with RoHS3 compliance.
This power supply is suitable for applications requiring reliable power conversion, such as telecom, datacom, and industrial equipment.
90-264 VAC or 120-390 VDC.
5 VDC.
80W convection, 150W with 300 LFM forced air.
-20°C to 70°C with derating.
Open frame, 4 x 2 x 1.3 inches, chassis mount.
84% typical at 120 VAC, 86% typical at 230 VAC.
IEC/EN/UL 62368-1 compliant, CE approved.
