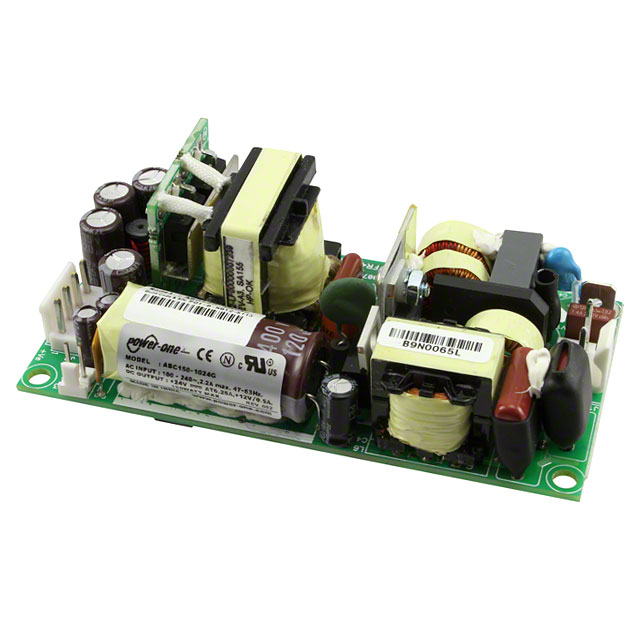

The Bel Power Solutions ABC150-1015G is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 15V DC output with a maximum current of 6.67A, delivering up to 100W under convection cooling and 150W with forced air.
This converter operates with a universal input voltage range of 90-264 VAC, ensuring compatibility across different power grids. It boasts high efficiency, typically 86% at 230 VAC, and features like adjustable output, DC input capability, and standby output. The unit is designed for chassis mounting and measures 101.6mm x 50.8mm x 33.6mm.
Compliance includes CE approval and RoHS3 compliance. The operating temperature range is -20°C to 70°C with derating. Its robust design and specifications make it suitable for various industrial and datacom equipment.
The output voltage is 15 VDC.
The maximum output current is 6.67 A.
The power rating is 100W under convection cooling and 150W with forced air.
The input voltage range is 90-264 VAC.
The efficiency is typically 86%.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 33.6mm.
