| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

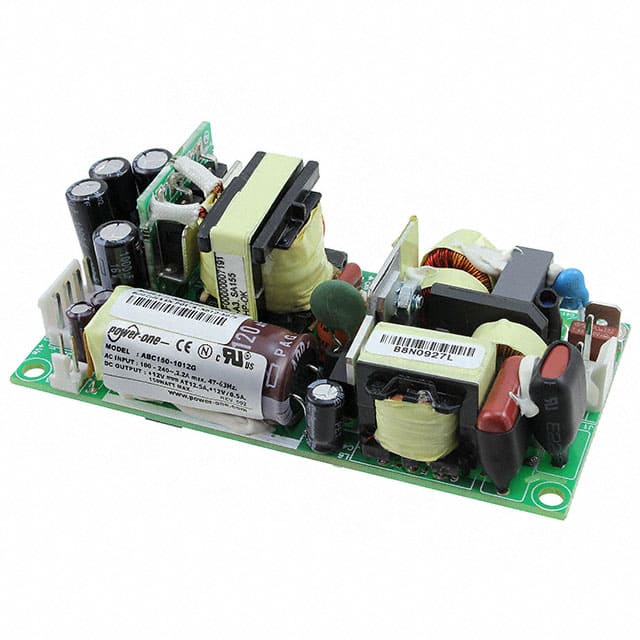

The Bel Power Solutions ABC150-1012G is an open frame AC/DC converter designed for high power density applications. It features a universal input range of 90-264 VAC and provides a 12VDC output.
With a maximum output power of 110W under convection cooling and 150W with forced air, this converter offers flexibility for various thermal management strategies. It boasts high efficiency, typically 86% at 230 VAC, minimizing power loss and contributing to system reliability.
The unit operates within a temperature range of -20°C to 70°C with derating and has dimensions of 101.6mm x 50.8mm x 33.6mm. It is suitable for ITE (Commercial) applications and meets IEC/EN/UL 62368-1 standards.
Key electrical specifications include a line regulation of ±0.5% and load regulation of ±2.0%. It also features a fan output of 12V @ 0.5A. The converter is RoHS3 compliant and has an MSL of 1.
The output voltage is 12 VDC.
The maximum output power is 150W with forced air cooling, and 110W under convection cooling.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm (Length) x 50.8mm (Width) x 33.6mm (Height).
Yes, it is RoHS3 Compliant.
