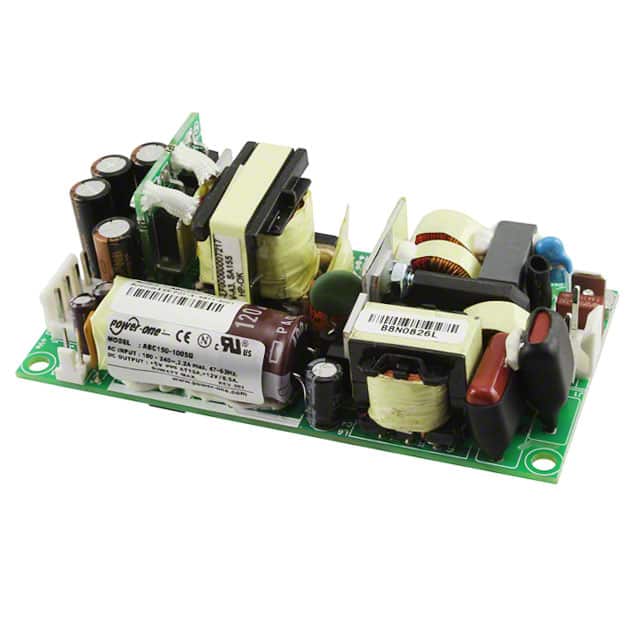

The Bel Power Solutions ABC150-1005G is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single output voltage of 5VDC with a maximum load of 16.0A, delivering up to 80W under convection cooling and 150W with forced air.
Key electrical specifications include a wide universal input voltage range of 90-264 VAC, high efficiency up to 86% at 230 VAC, and a power factor of 0.99 at 120 VAC. The converter also features low leakage current and meets IEC/EN/UL 62368-1 compliance.
Mechanically, the unit has a compact form factor with dimensions of 4.00" x 2.00" x 1.32" (101.6mm x 50.8mm x 33.6mm) and is designed for chassis mounting. It operates within a temperature range of -20°C to 70°C with derating.
This series is suitable for various applications including telecom, datacom, and industrial equipment, offering high power density and reliability.
The output voltage is 5 VDC.
The maximum output power is 150 W with forced air cooling.
The typical efficiency is 86% at 230 VAC input.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 33.6mm.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
